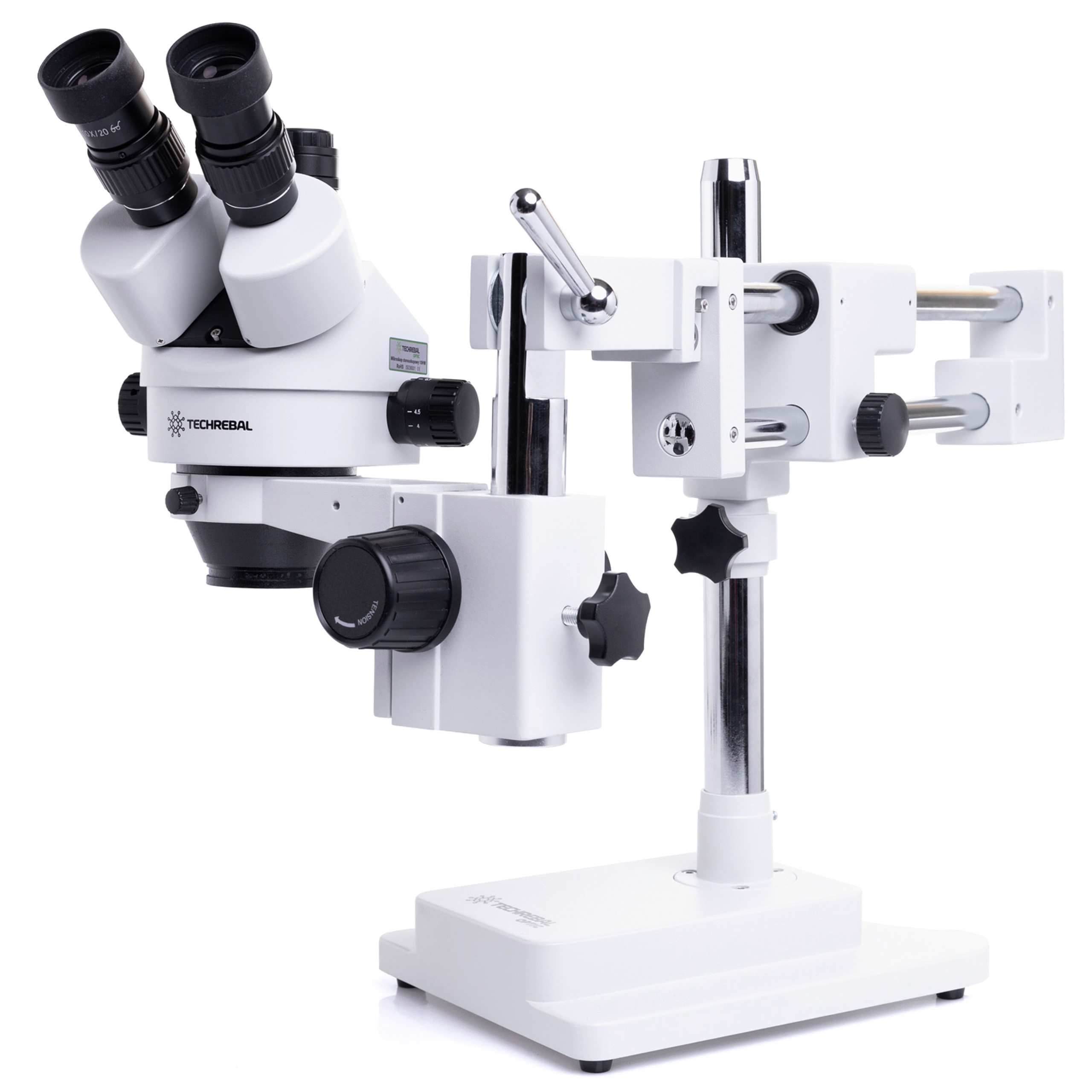

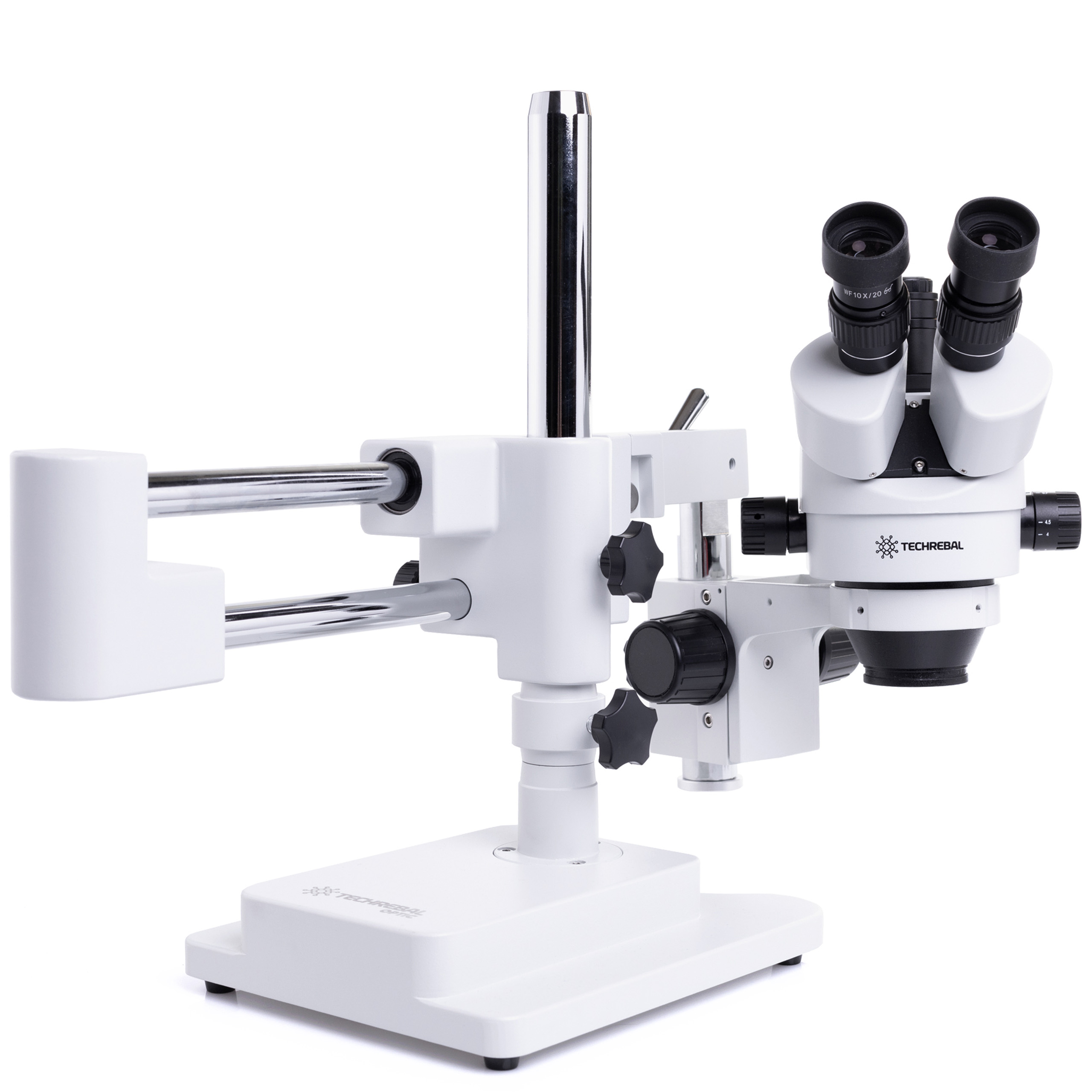

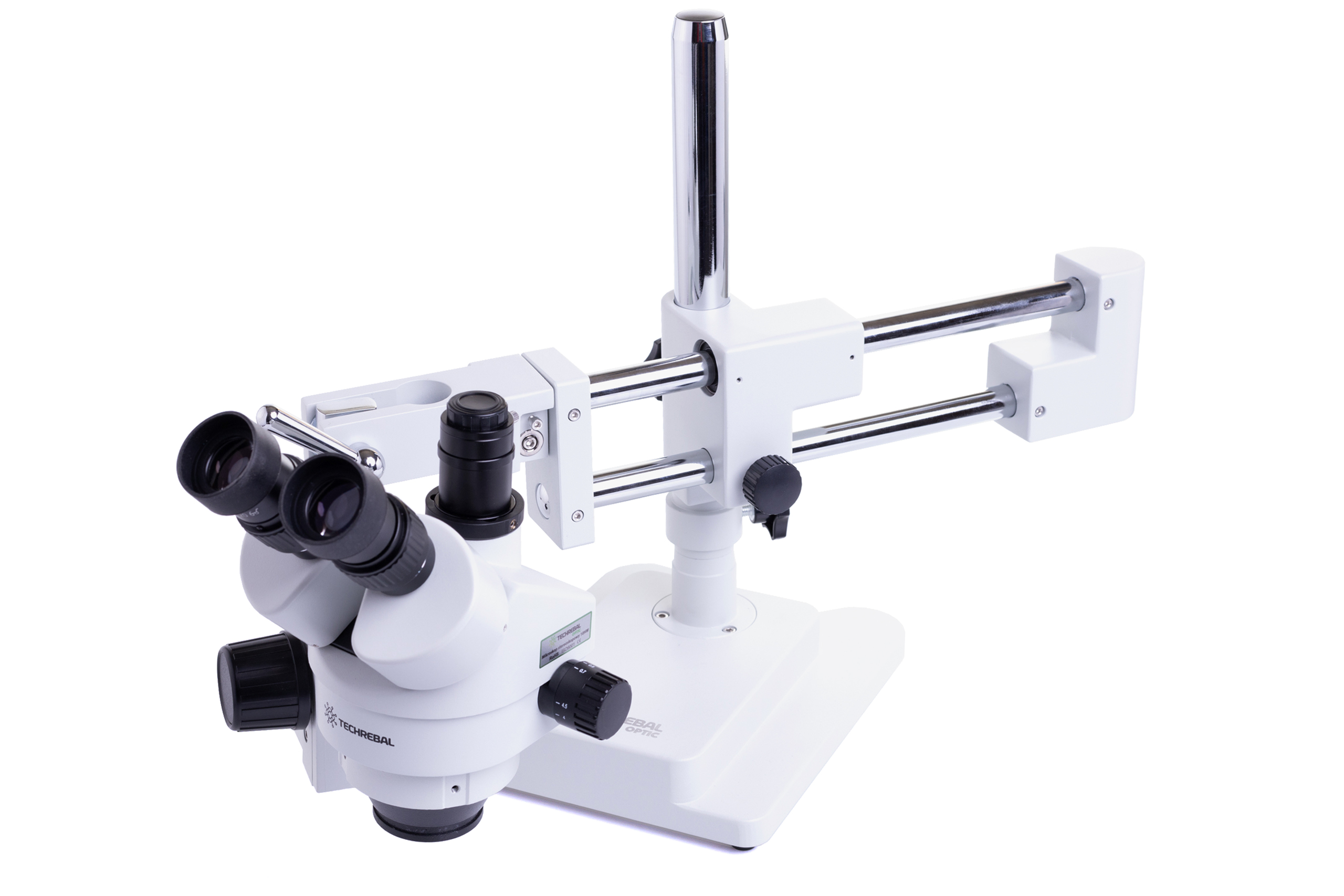

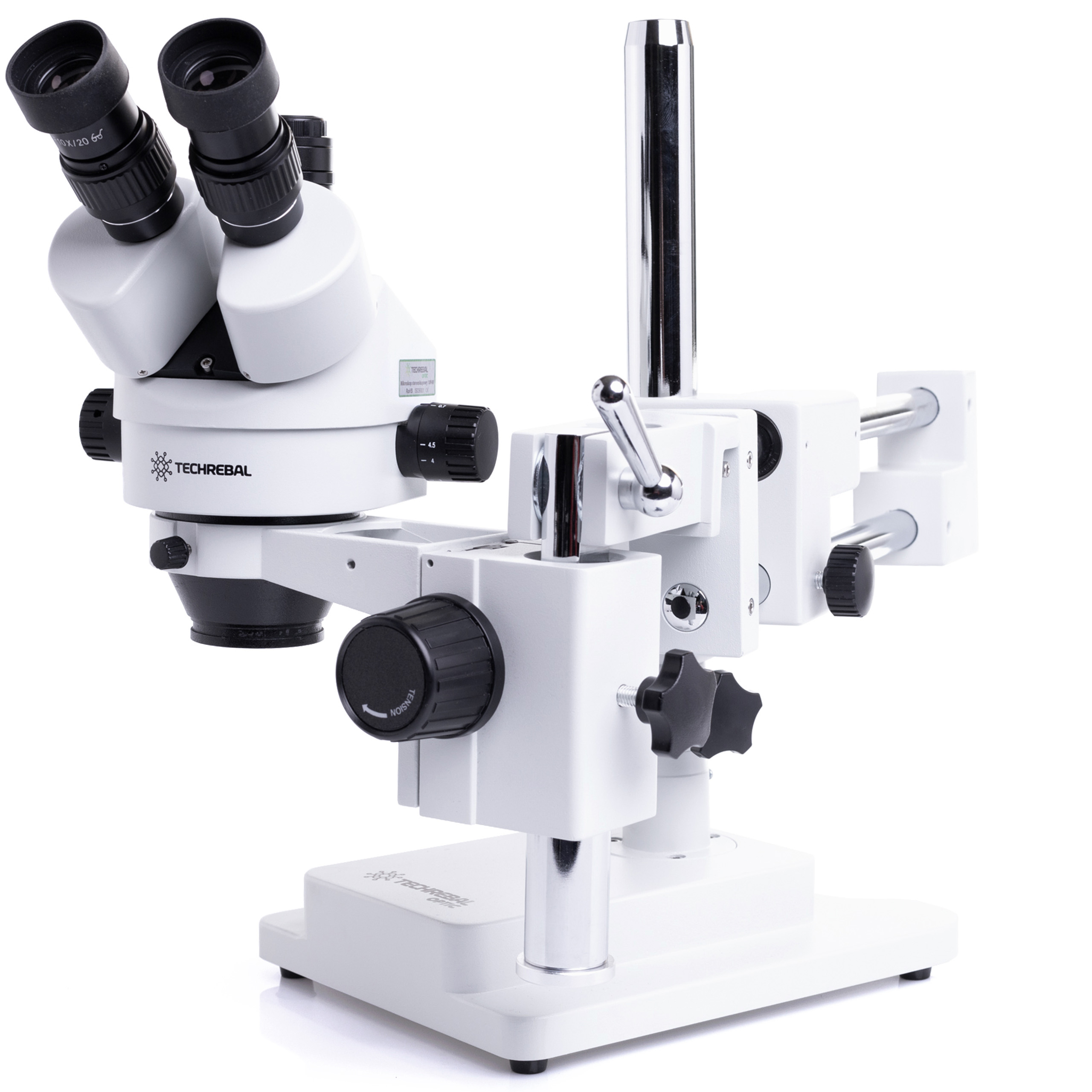

Techrebal 10HW 7-45X trinocular microscope + 56x LED illumination + 0.5 Barlow lens + 10" display + Techrebal "Blue Lagoon" 2MP camera

The Techrebal 10HW 7-45X professional trinocular microscope is ideal for research and precision observations. It is equipped with 56x LED illumination, the 2MP Techrebal "Blue Lagoon" camera and a 0.5 Barlow lens, among other features, for excellent lighting conditions and increased optical magnification. An excellent instrument for laboratories, schools and hobbyists. High build quality and reliability.

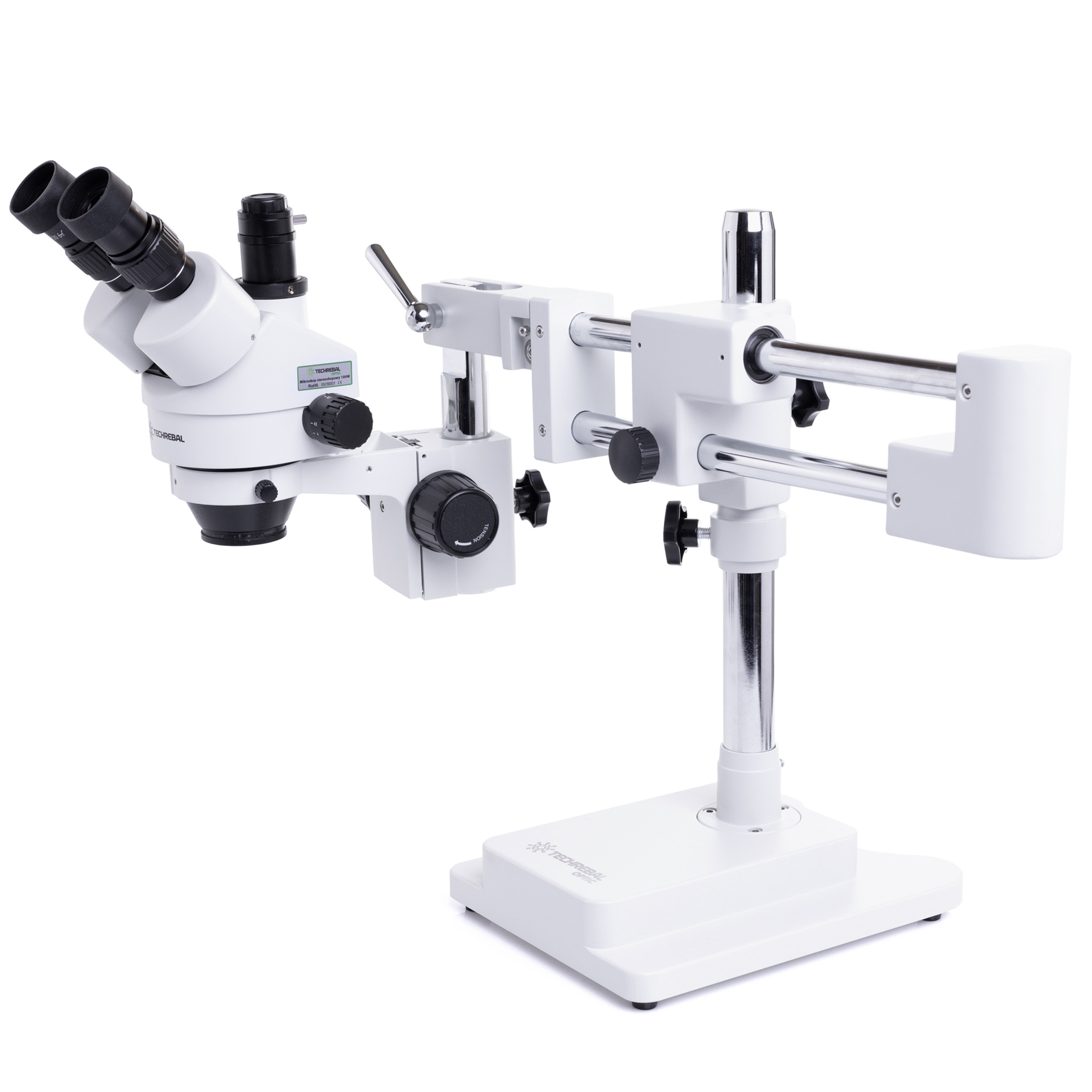

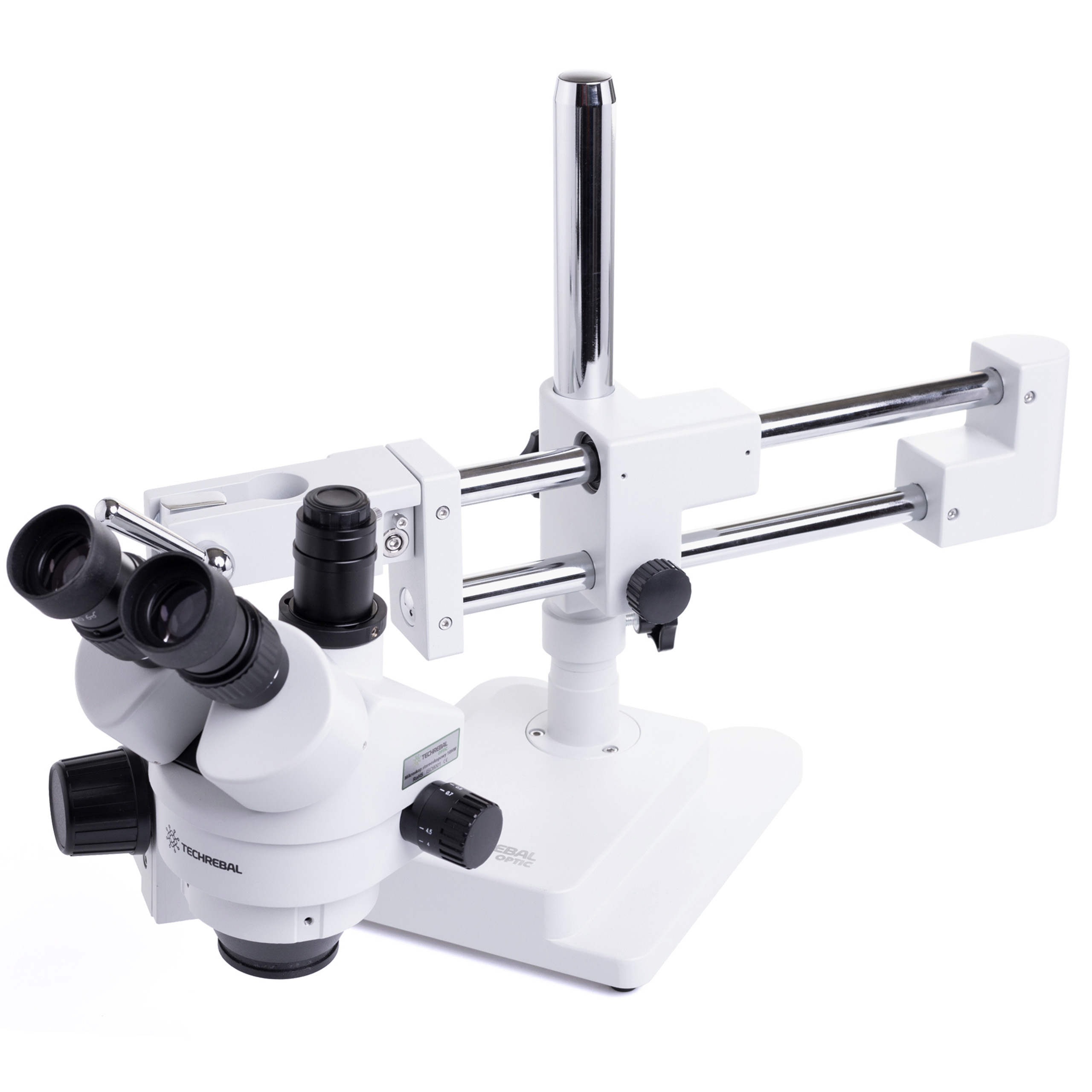

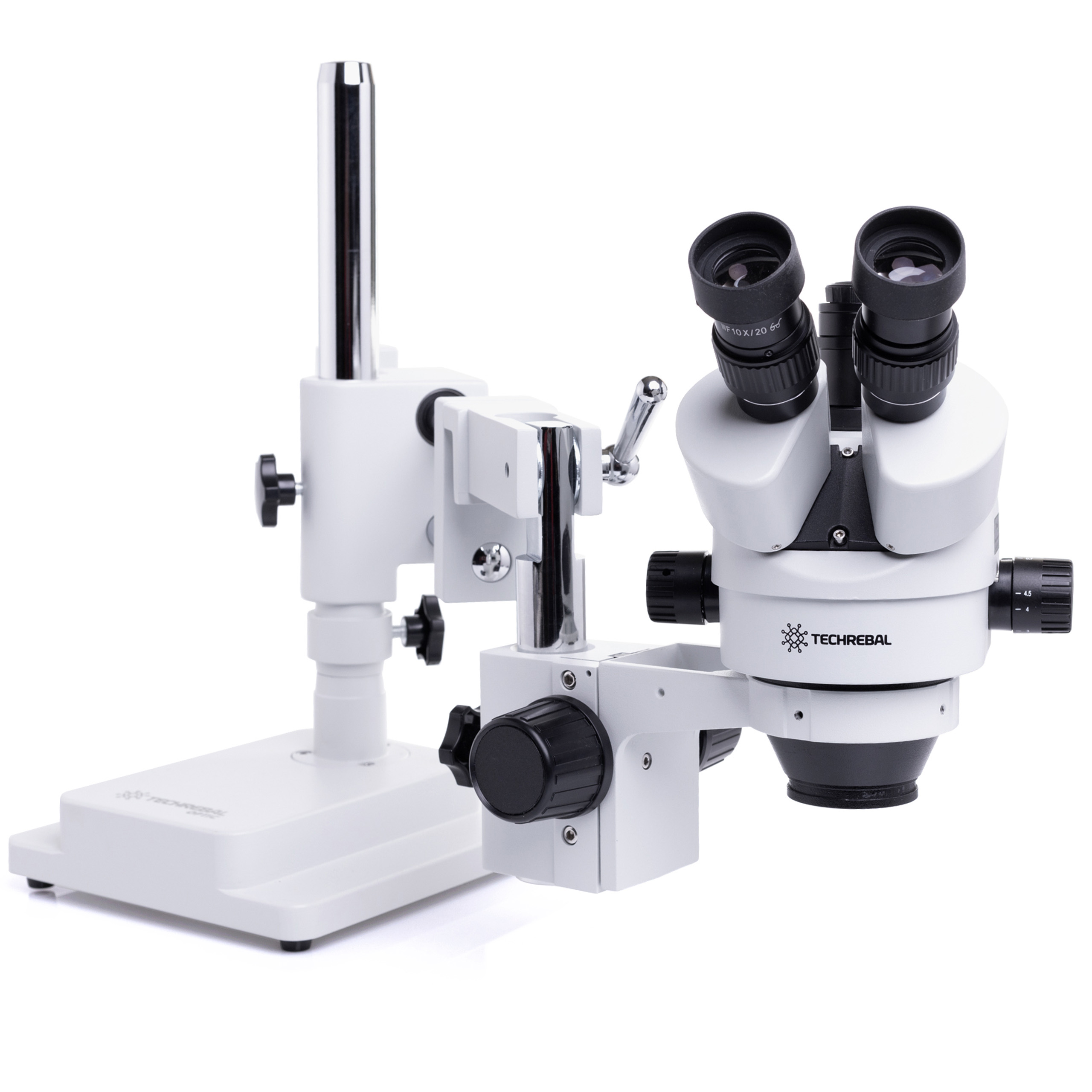

The ✅ 10HW is a reliable stereo microscope with a 45 degree inclined trinocular head. The optics of this model are made of high-quality glass with a special coating for sharp images and natural colours. High-quality glass optics, 7x-45x zoom range.

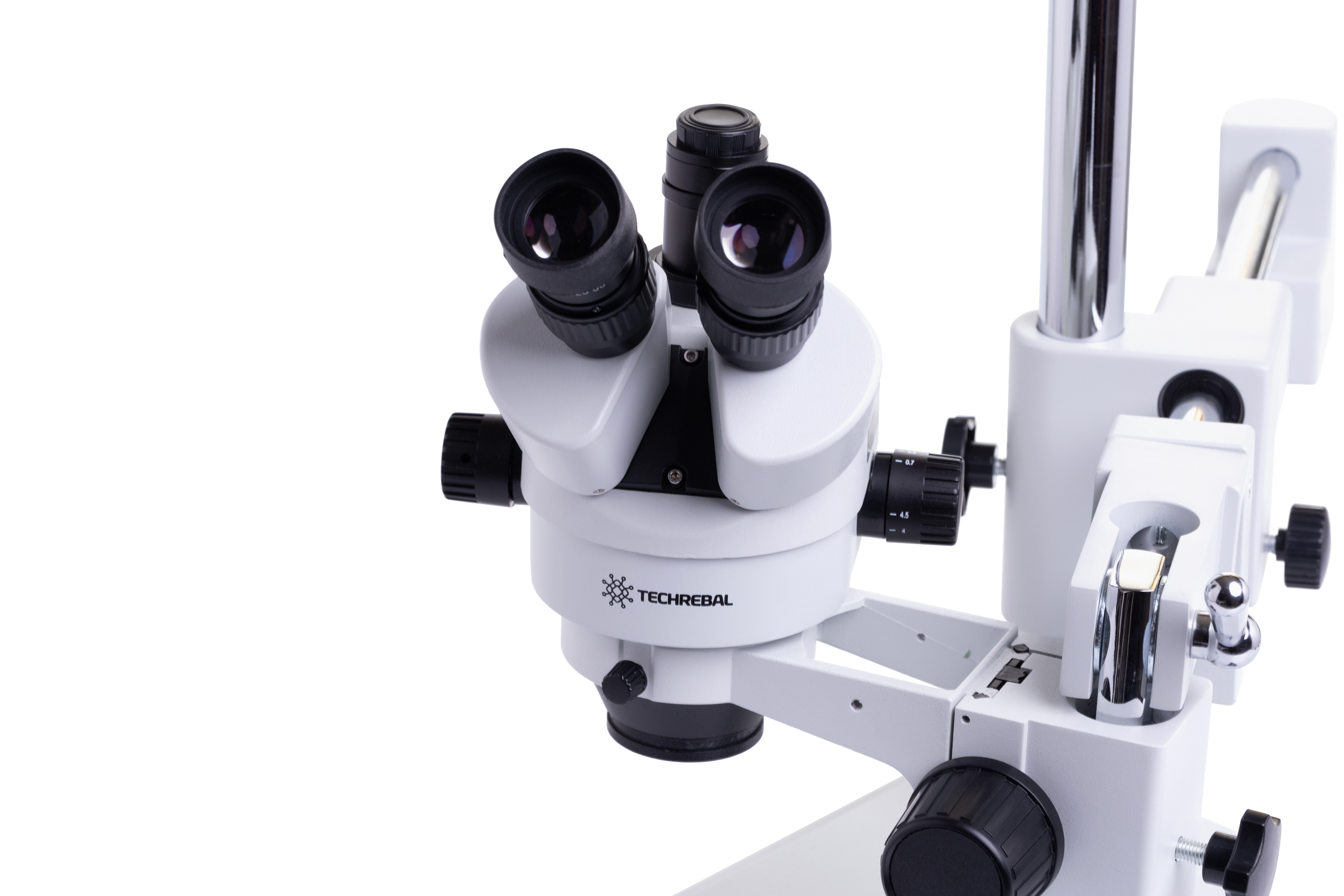

✅Swivelling head with 360° rotation, The large working distance provides sufficient working space; this type of microscope is particularly suitable for electronic engineers or jewellers who have to 'manoeuvre' the instrument between heads.

The microscope is equipped with dioptric adjustment for both eyepieces and adjustable pupil distance to suit the eyes. Designed to meet the needs of modern professional microscope applications.

The ✅ 10HW is an excellent microscope that allows the magnification, field of view or working space to be successively expanded. Thanks to the trinocular head, it allows you to mount a video camera to take photos, shoot videos or broadcast your repairs live.

Thisis probably the best model available on the world market: comparing microscopes of this type, the quality is superior to that of more expensive models.

The very large working distance allows you to examine both flat slides and larger objects. In addition, you can expand the working distance or magnification to suit your needs by using additional lenses or eyepieces available in our offerings.

❇️ Examples of applications:

• Welding of electronic components
• Industrial inspection,
• Inspection of computer components,
• inspection of telecommunications modules,
• learning tool
• laboratory testing
• medical analysis
• school research tool,
• insect investigation
• plant research
• skin testing,
• textile inspection,
• jewellery inspection,
• inspection of collections/coins,
• inspection of prints

The microscope is built with the Simul-Focal system, which allows simultaneous observation through both eyepieces and camera.

As with all stereoscopic microscopes, the magnification range of the camera (an optional retrofit is available) and that of the eyepiece differ: the camera is about 80-120X as standard, while observation through the eyepiece is 7-45X. This is because what you see through the camera is only corrected by the microscope's optics, whereas with the eyepiece it is corrected by the microscope itself in addition to the optics. This can be corrected plus or minus by using the appropriate lenses available in our other rods.

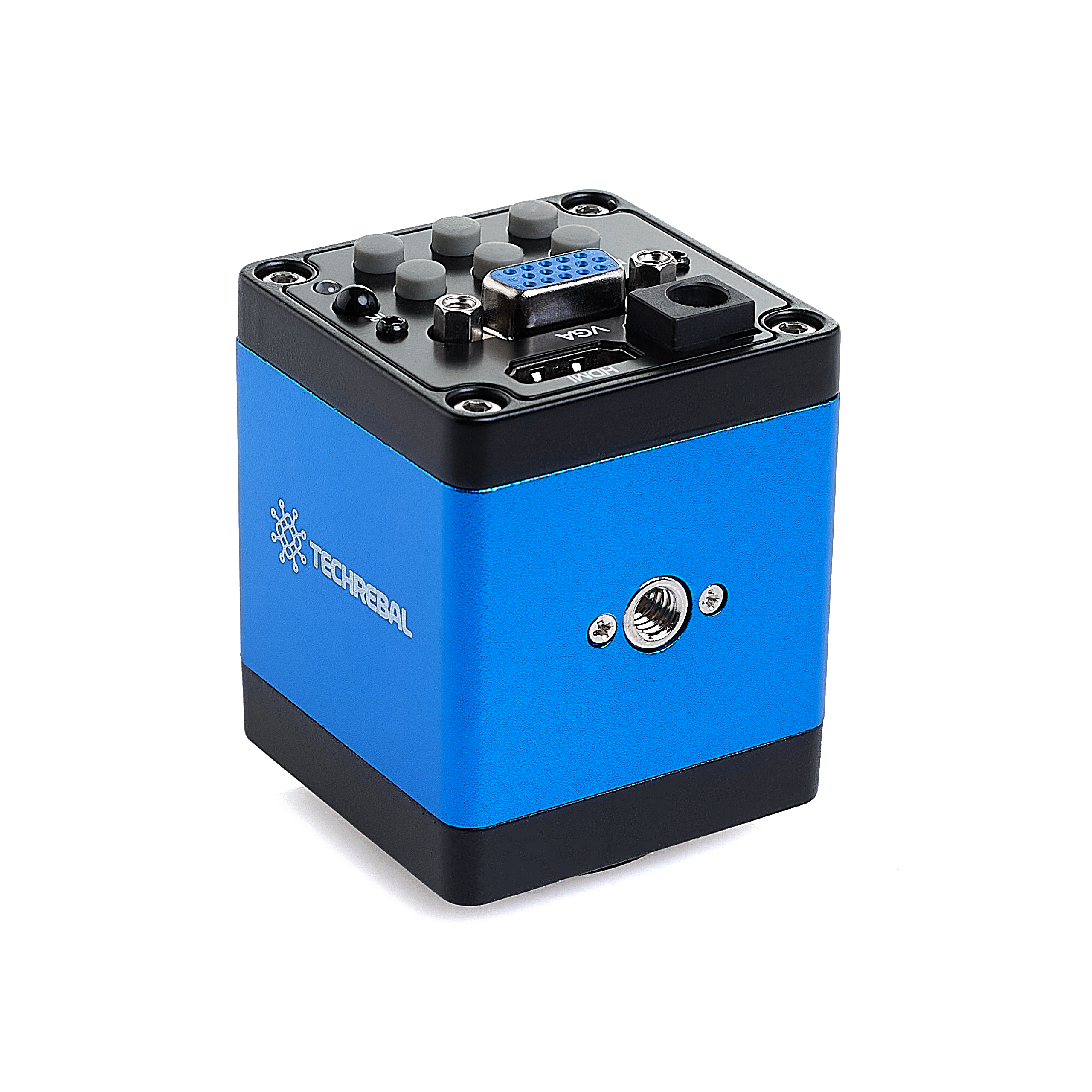

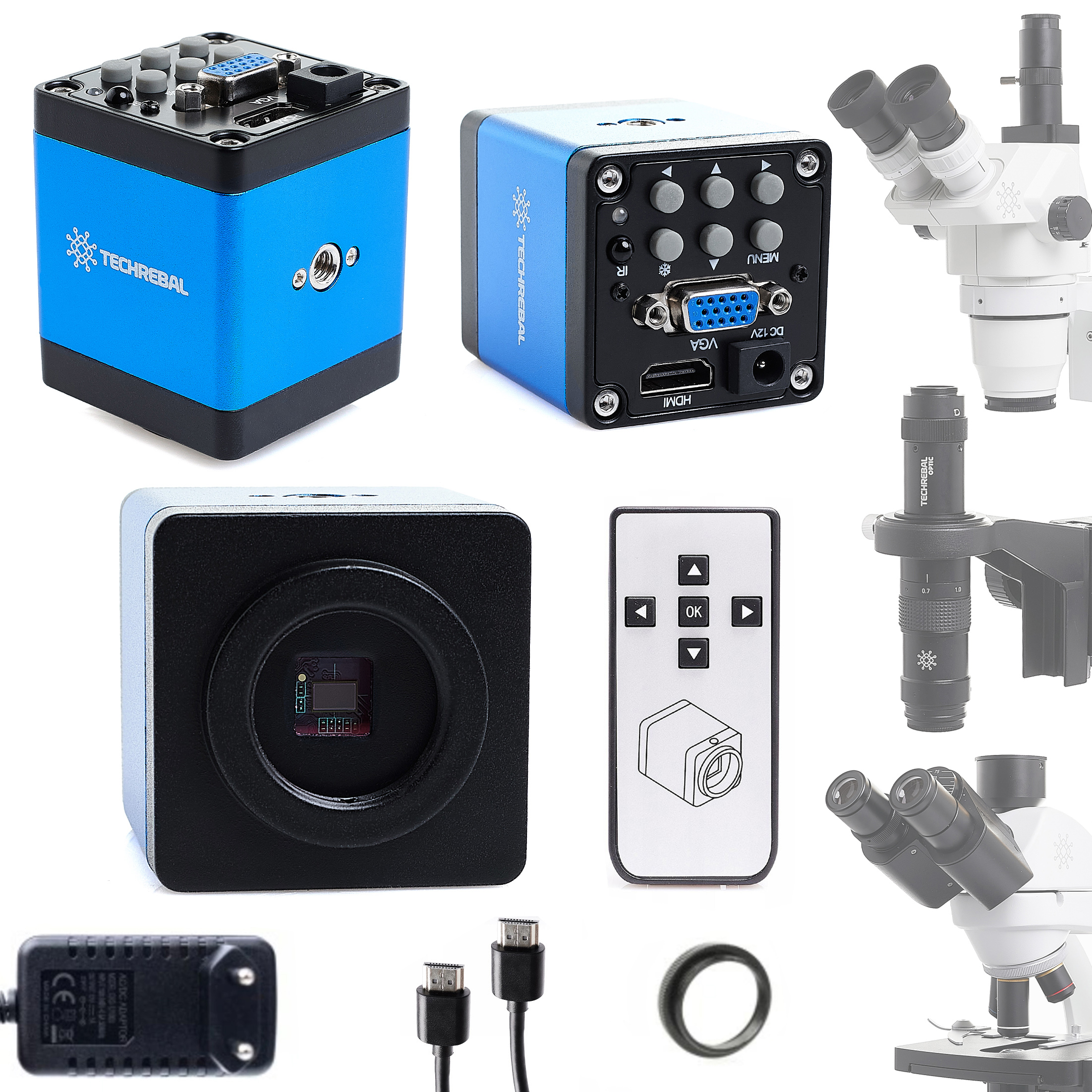

Techrebal "Blue Lagoon" FULL HD HDMI 2.0MP camera for blue microscope FHD2MPR

The camera enables the observation of microscopic objects. It is characterised by its high functionality and quality. It allows the microscope image to be displayed on the screen in real time, in FullHD quality. The camera can be connected to a monitor via an HDMI or VGA cable. It offers excellent colour reproduction with low noise and is a good choice when colour fidelity is important.

❇️ Specifications:

• Sensor: 2MP
• White Balance: Auto
• Light: Auto
• Effective pixels: 1920*1080P
• Frame rate: 60fps @ 1080P
• Image adjustment functions: Chroma / saturation / brightness / contrast / sharpness correction / backlight compensation
• Image interface: VGA / HDMI interface - can be displayed simultaneously
• Operating temperature: 0-60 degrees Celsius
• Mounting thread: C-mount (25 mm)
• Sensor used: GC 2053 1/2.9"

✅ FullHD image quality is achieved during real-time viewing.

Trinocular stereoscopic microscopes from our range will also fit the camera, as will optics for digital microscopes with C-mount thread.

❇️ Application example:

• Welding of electronic components
• Industrial inspection,
• inspection of computer components,
• inspection of telecommunications modules,
• learning tool
• laboratory testing
• medical analysis
• school research tool,
• insect investigation
• plant research
• skin testing,
• textile inspection,
• jewellery inspection,
• inspection of collections/coins,
• inspection of prints,

DO YOU NEED A MICROSCOPE WITH SPECIAL PARAMETERS AND SPECIFICATIONS?

WE WILL ADVISE YOU IN THE CHOICE OF EQUIPMENT DEPENDING ON THE PURPOSE :)

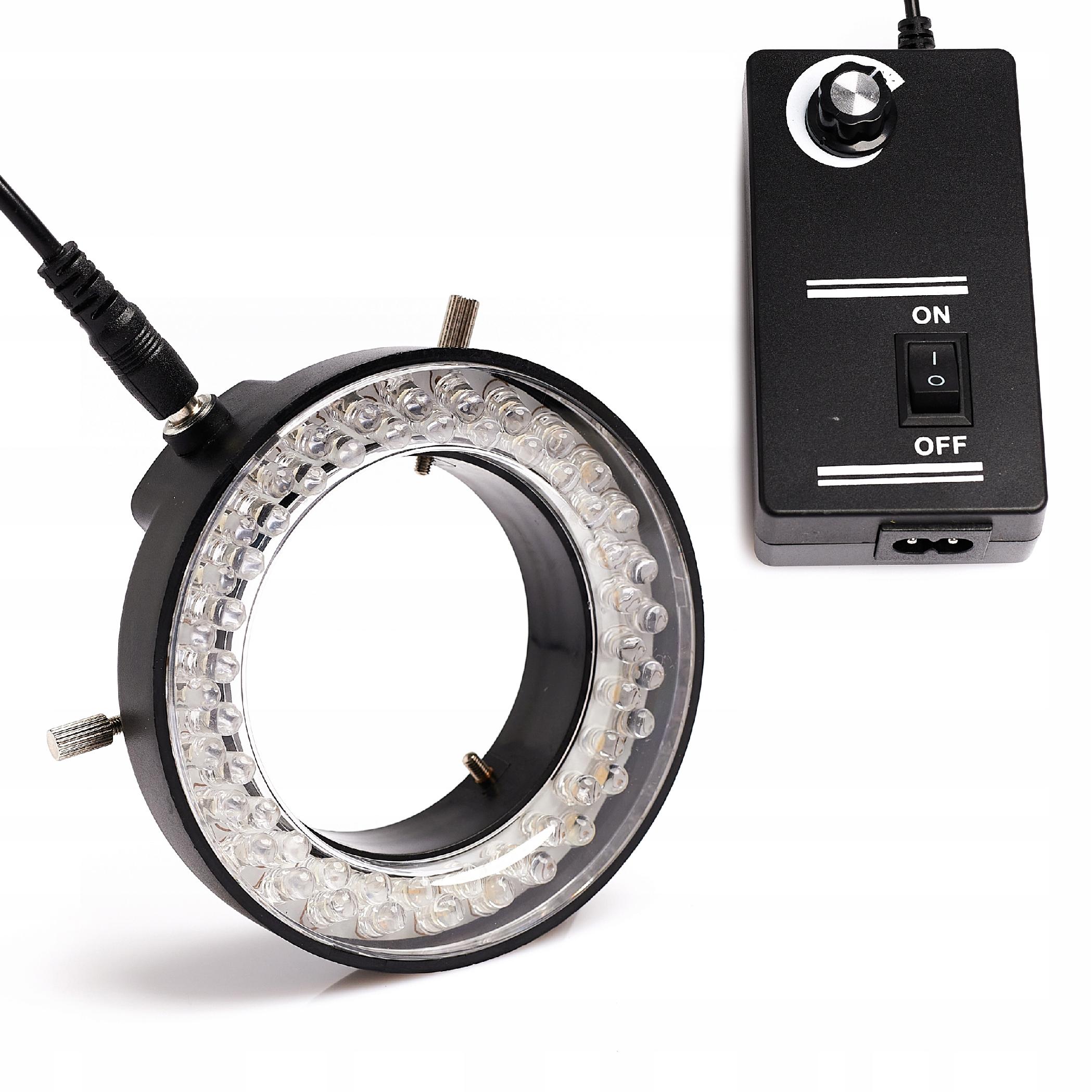

56x LED illuminator for microscope 60mm 8W

✅ Light source for microscope with 56 LEDs with dimmer.

✅ Intensity adjustable via a potentiometer on the ballast.

✅ Providescool, even, intense and focused illumination without shadows.

✅ The ring diameter is 60 mm on the inside and 95 mm from the outside diameter (can be adjusted by means of screws).

✅ Equipped with a power supply unit that connects directly to the mains.

✅ Ideal light source for microscopes.

✳️ Specifications:

✔️ Working distance: 40-160 mm

✔️ Maximum illumination 60,000 lux

✔️ LED x 56 (long-life LED)

✔️ Brightness of each diode: X3500 mcd

✔️ Colour temperature: 5500k - 6500k

✔️ Continuously adjustable brightness

✔️ Bright white colour

✔️ Effective optical distance: 75 mm

✔️ Effective optic diameter: 30 mm

✔️ Power: 8W

✔️ Voltage: input AC 90V-240V, output DC 12V

✔️Oświetlacz Connected directly to the mains.

✳️ Dimensions of the illuminator:

✔️ External dimensions: 95 mm,

✔️ Inner dimensions: 60 mm

✔️ Adapter thread 48 * 0.75

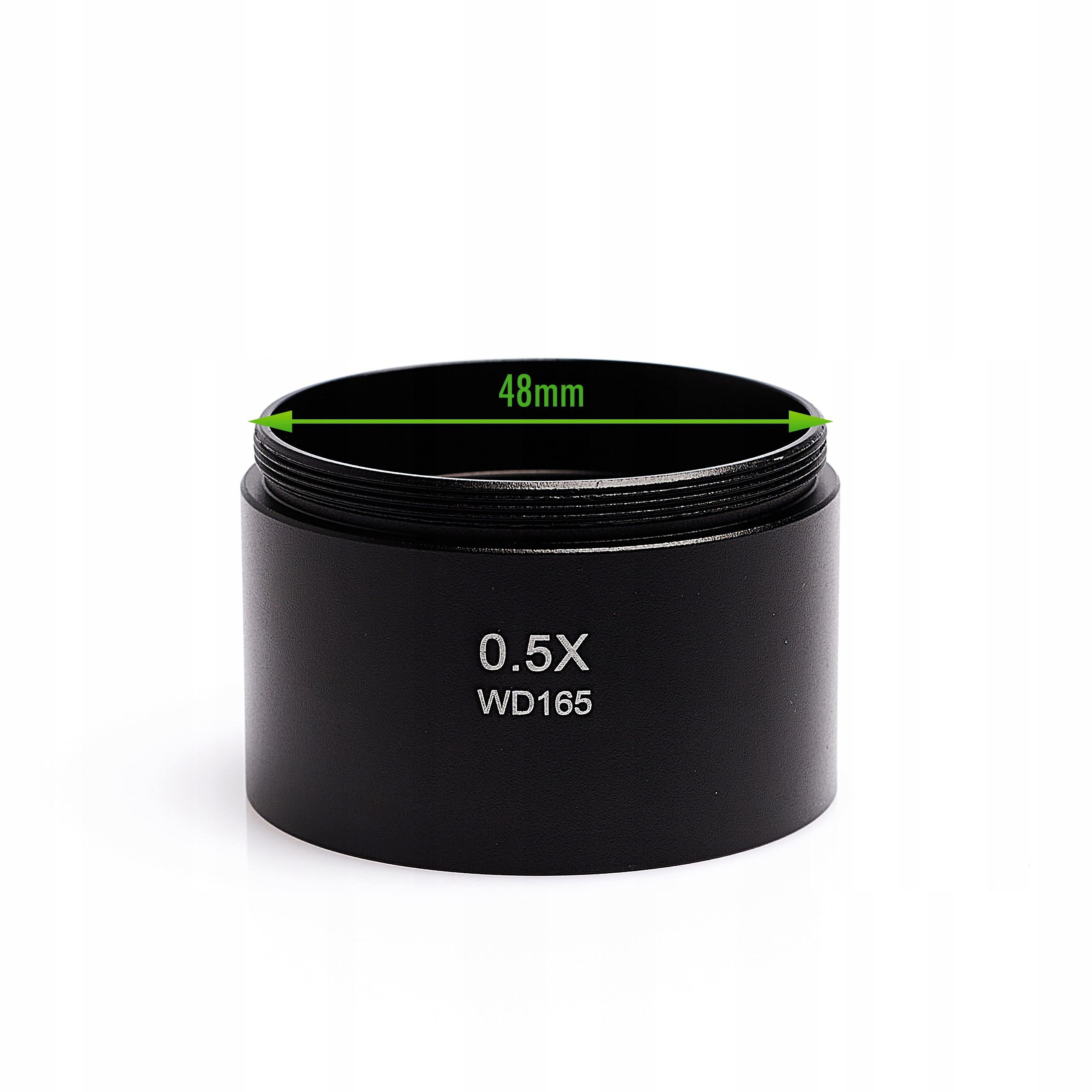

Lens 0.5x for stereo microscopes

0.5x lens for stereo microscopes in our range. It is used to increase the magnification range. The objective is mounted via a thread on the underside of the stereo head.

❇️ Technical data:

• Magnification: 0.5x
• Working distance: 165 mm

The objective is suitable for our stereomicroscopes, including:

• K10E
• K10F
• K10H
• K10H-380
• 20H-M2
• 10HW
• 22H
• 10H-616-8 inch
• 10H-M3-612-8 inch HDMI

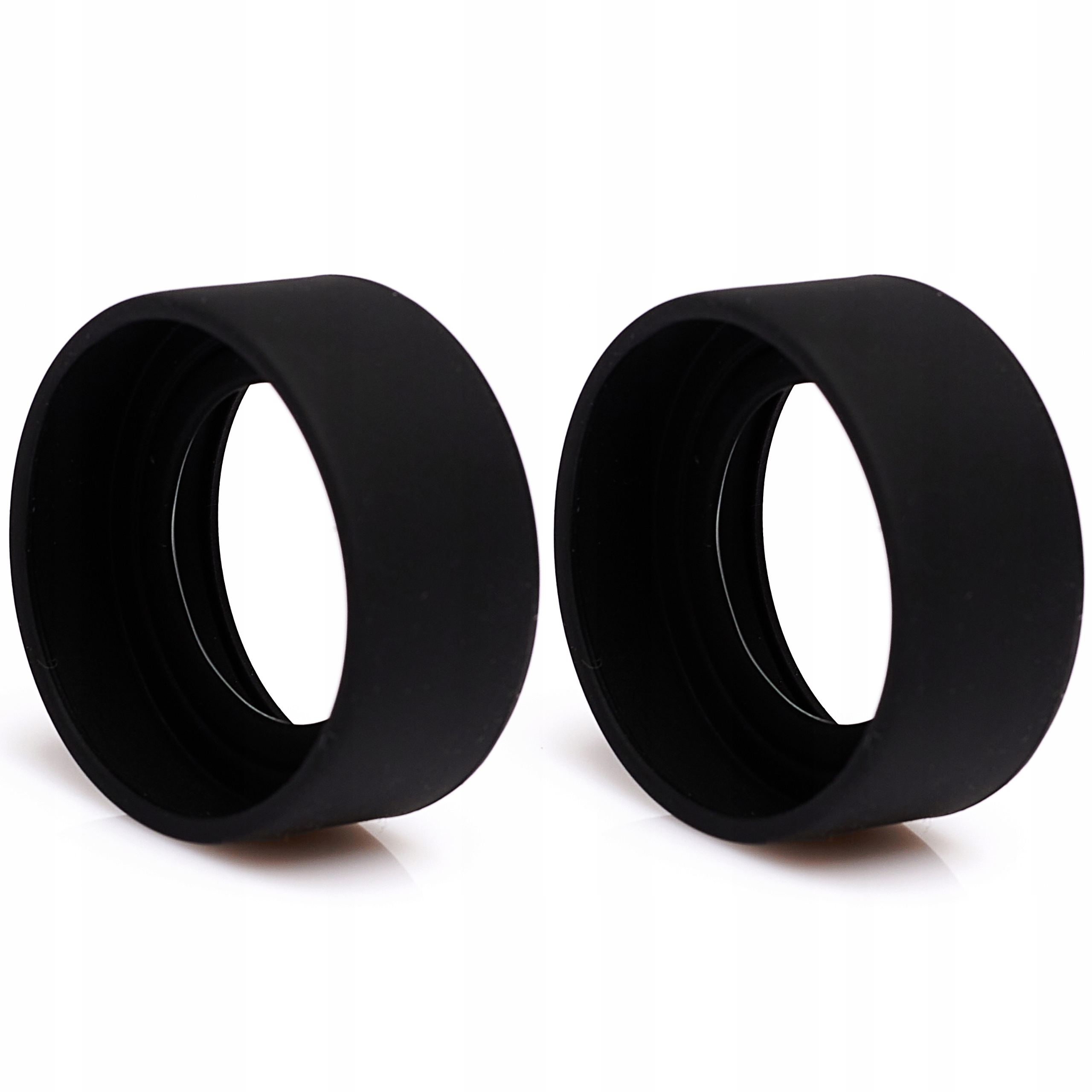

Rubber lenses for microscopes

Suitable for all our stereoscopic microscopes.

❇️ Dimensions:

• inner diameter: 34 mm
• outer diameter: 40 mm

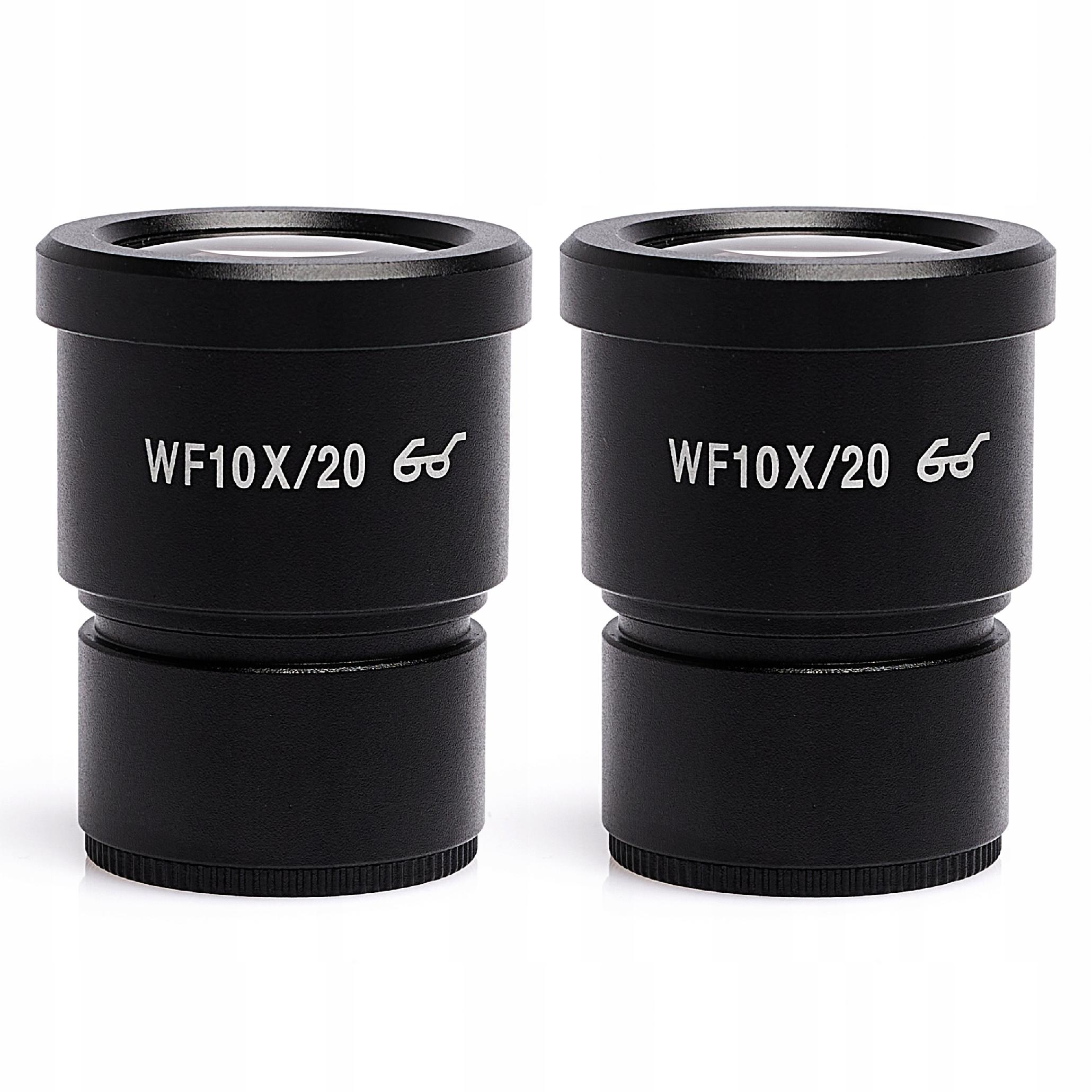

Eyepiece WF10X/20 2pcs.

❇️ Specifications:

• Eyepiece compatible with all stereomicroscopes in our range
• Standard magnification: 7x
• Maximum magnification: 45x
• Field of view diameter: 20 mm
• Price is for a pair (2 pieces)

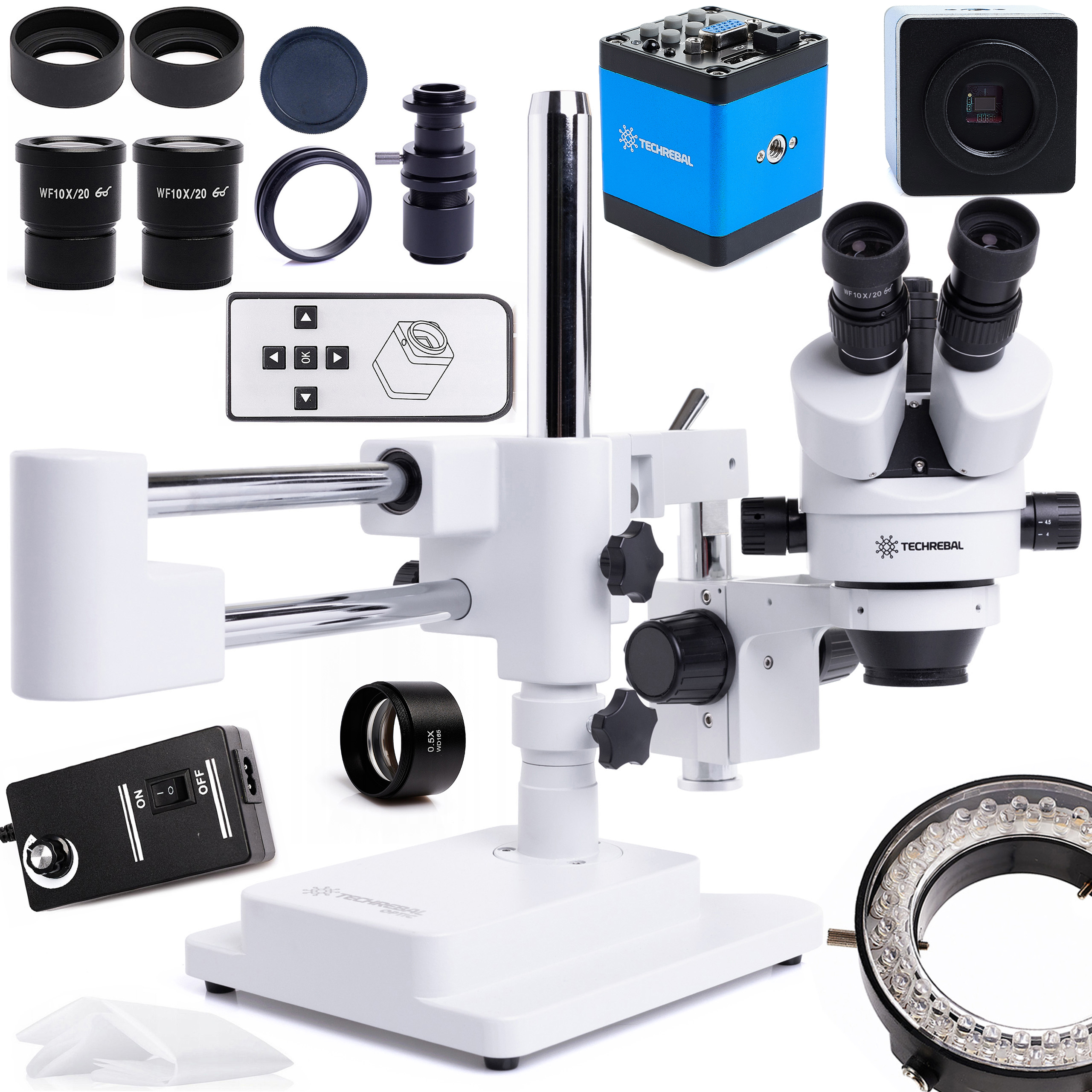

✳️ Set includes:

1️⃣ Techrebal 10HW 7-45X trinocular microscope

Includes:

• Trinocular head
• Stable microscope base with double crane
• Pillar supporting the entire structure
• Focusing arm (distance)
• Fixing stand
• Microscope case
• Rubber eyepiece covers
• Eyepiece WF10X/20mm 2 pieces

2️⃣ LED illumination 56x for 60 mm microscope

3️⃣ Barlow lens 0.5x for microscope

4️⃣ Techrebal "Blue Lagoon" FULL HD HDMI 2.0MP camera for the microscope

included:

• Power supply
• Remote control
