Fluke Networks DTX-SFM2 SingleMode 1310 / 1550nm Fiber Modules
For use with DTX-1200 and DTX-1800 Cable Testers
(Cable Testers Not Included In Sale!)
Test & Certify SingleMode 1310 / 1550nm Fiber Cabling Installations!

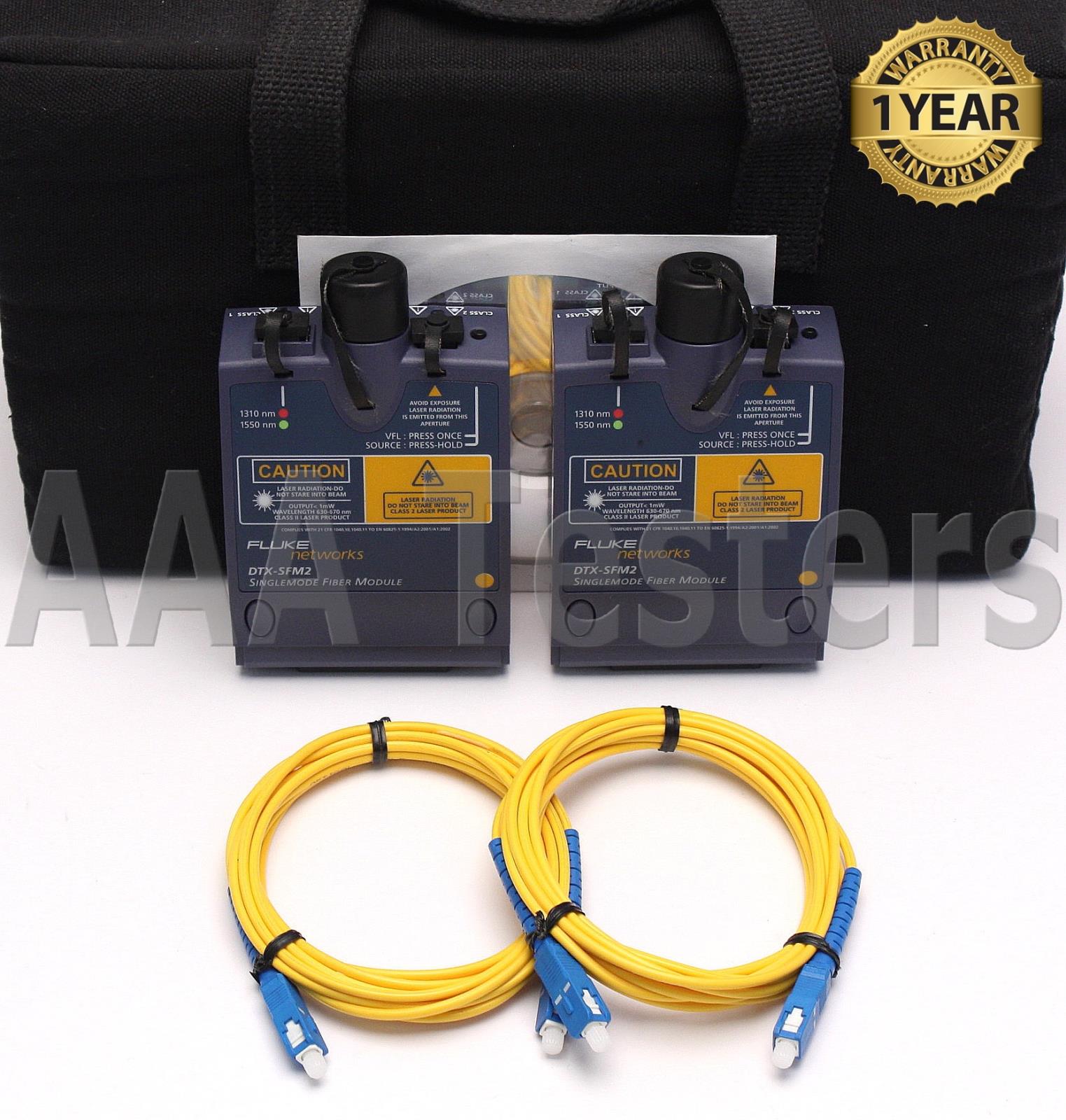

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Calibrated: Yes
Condition: Refurbished
Warranty: 1 YEAR WARRANTY
Fluke Networks DTX-SFM2

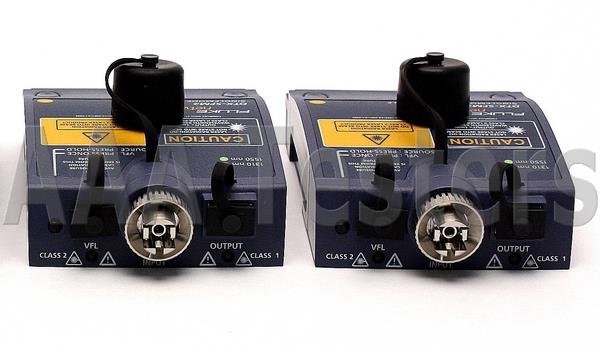

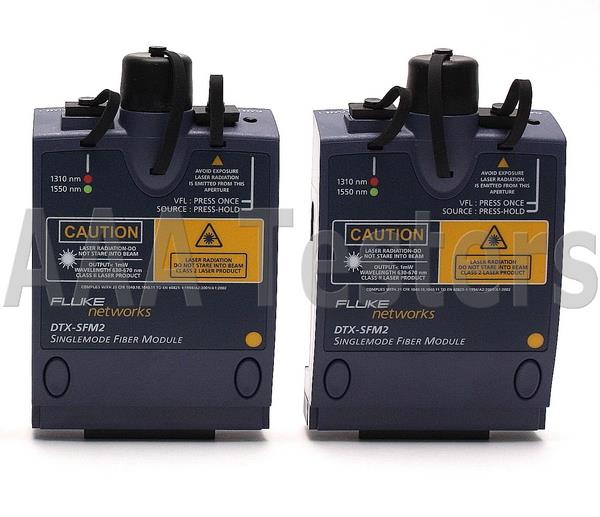

DTX Singlemode Fiber Modules - Includes two modules (one for Main and one for Smart Remote). each module contains 1310 nm and 1550 nm laser light source combined into single output port, 850-1550 nm power meter, integrated VFL, SC adapter for power meter and Singlemode SC-SC Test Reference Cords.

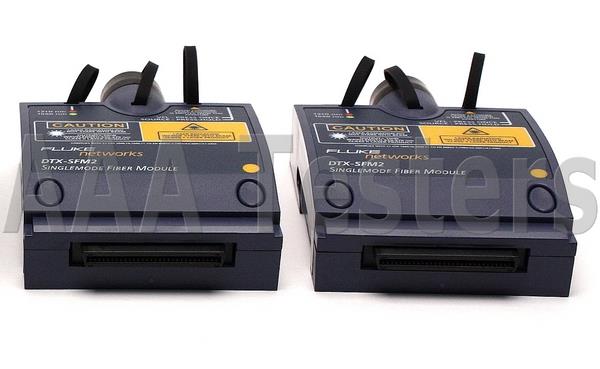

Fluke Networks' DTX-SFM2 set of two DTX Fiber Modules adds record-fast singlemode fiber certification and fault location to the DTX CableAnalyzer™ Series. Only Fluke Networks' DTX platform offers optional on-board fiber modules so you'll never lose time searching for your fiber adapter. Modules are easy to insert into the back of any DTX Series CableAnalyzer. With a resident fiber module on board, fiber certification is always ready when you are. No other solution lets you switch between copper and fiber with a touch of a button.
These modules deliver the greatest time and cost savings. They accelerate testing through exclusive technology and an easy-to-use interface. Press the Autotest button and you get standards-compliant certification automatically. Test two fibers each at two wavelengths, measure length and determine the pass or fail status -- all in about 12 seconds. That's five times faster than other adapters. These modules let you test more fibers in less time, cutting testing costs and freeing you up for other tasks. They can easily save more than 100 labor hours per year.
DTX-SFM fiber modules use laser sources to ensure standards-compliant certification of singlemode fiber. Speed testing with TALK, FINDFIBER, MONITOR, bi-directional and single fiber test features. Save, upload, manage and print comprehensive certification reports using LinkWare PC software.
These comprehensive Tier 1 certification solutions include loss, attenuation, length and polarity measurements. You can validate fiber link performance and installation quality. Measure optical loss at multiple wavelengths. And bi-directionally test fibers at two wavelengths without swapping near- and far-end units. Deliver Tier 1 fiber certification reports by uploading test results to LinkWare PC software.
An integrated on-module visual fault locator (VFL) makes troubleshooting simple link problems quick and incredibly easy. The bright laser-driven VFL helps you locate many near-end fiber faults. Also use it to locate fibers as well as verify continuity and polarity. Exclusive integrated design ensures the visual fault locator is always on hand when you need it.
|
