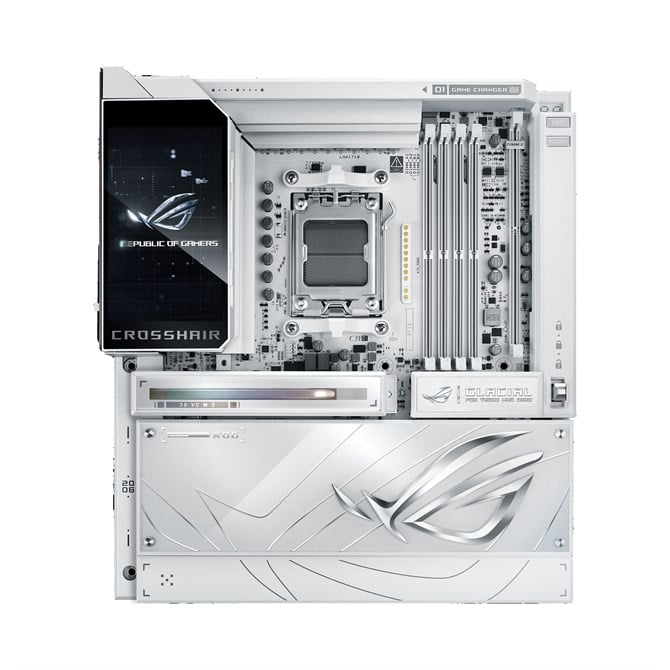

ASUS ROG CROSSHAIR X870E GLACIAL AMD X870E Socket AM5 Extended ATX

ASUS ROG CROSSHAIR X870E GLACIAL AMD X870E Socket AM5 Extended ATX

12V power connector : Yes


1st M:2 highest PCI Express generation : 5.0


1st M:2 largest key size : 22110


2nd M:2 highest PCI Express generation : 5.0


2nd M:2 largest key size : 2280


3rd M:2 highest PCI Express generation : 4.0


3rd M:2 largest key size : 2280


Antenna included : Yes


ATX Power connector (24-pin) : Yes


Audio chip : Realtek ALC4082


Audio output channels : 7.1 channels


BIOS memory size : 1024 Mbit


BIOS type : UEFI AMI


Bluetooth : Yes


Bluetooth version : 5.4


Cables included : SATA


Compatible processor series : AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series


Component for : PC


CPU fan connector : Yes


Depth : 277 mm


EAN : 4711636392044


ECC ?ompatibility : ECC & Non-ECC


EPS power connector (8-pin) : Yes


Ethernet interface type : 10 Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 2


Front panel audio connector : Yes


Front panel connector : Yes


Manufacturer : ASUS


Manufacturer Part Code : 90MB1NQ0-M0EAY0


Maximum internal memory : 256 GB


Memory channels : Dual-channel


Memory slots type : DIMM


Microphone in : Yes


Model : 1


Motherboard chipset : AMD X870E


Motherboard chipset family : AMD


Motherboard form factor : Extended ATX


Number of chassis fan connectors : 2


Number of HDDs supported : 4


Number of M:2 (M) slots : 7


Number of memory slots : 4


Number of SATA III connectors : 4


Number of storage drives supported : 11


Number of temperature sensor headers : 1


Package depth : 320 mm


Package height : 125 mm


Package weight : 6.66 kg


Package width : 380 mm


Parallel processing technology support : Not supported


PCI Express x16 (Gen 4:x) slots : 2


PCI Express x16 (Gen 5:x) slots : 2


Processor manufacturer : AMD


Processor socket : Socket AM5


Product colour : White


Product name : ROG CROSSHAIR X870E GLACIAL


RAID levels : 0, 1, 5, 10


RAID support : Yes


RGB LED pin header : Yes


S/PDIF out port : Yes


Supported memory types : DDR5-SDRAM


Supported processor sockets : Socket AM5


Supported storage drive interfaces : M.2, SATA III


Supported storage drive types : HDD & SSD


Top Wi-Fi standard : Wi-Fi 7 (802.11be)


Unbuffered memory : Yes


USB 2:0 connectors : 3


USB 3:2 Gen 1 (3:1 Gen 1) connectors : 2


USB 3:2 Gen 2 (3:1 Gen 2) Type-A ports quantity : 8


USB 3:2 Gen 2 (3:1 Gen 2) Type-C ports quantity : 4


USB 3:2 Gen 2x2 connectors : 2


USB4 Gen 3x2 ports quantity : 2


Width : 305 mm


Wi-Fi : Yes


Wi-Fi standards : Wi-Fi 7 (802.11be)


WiFi-AP antenna jack : 1


Windows operating systems supported : Windows 11


WLAN controller model : MediaTek MT7927
