Full Coilovers Kit For BMW Z4 (E85) 03-08 Convertible Adj. Height Shock Absorber

BMW Z4 (E85) 03-08 컨버터블 Adj용 풀 코일오버 키트. 높이 충격 흡수기

상품번호	187016655180
상태	New
거래유형	즉시구매
출고국	미국 (US)

이베이 판매가

$270.2

약 398,275원

구매대행 예상 비용은 로그인 후 확인하실 수 있습니다.

상품 설명

tpm

Full Coilovers Kit For BMW Z4 (E85) 03-08 Convertible Adj. Height Shock Absorber

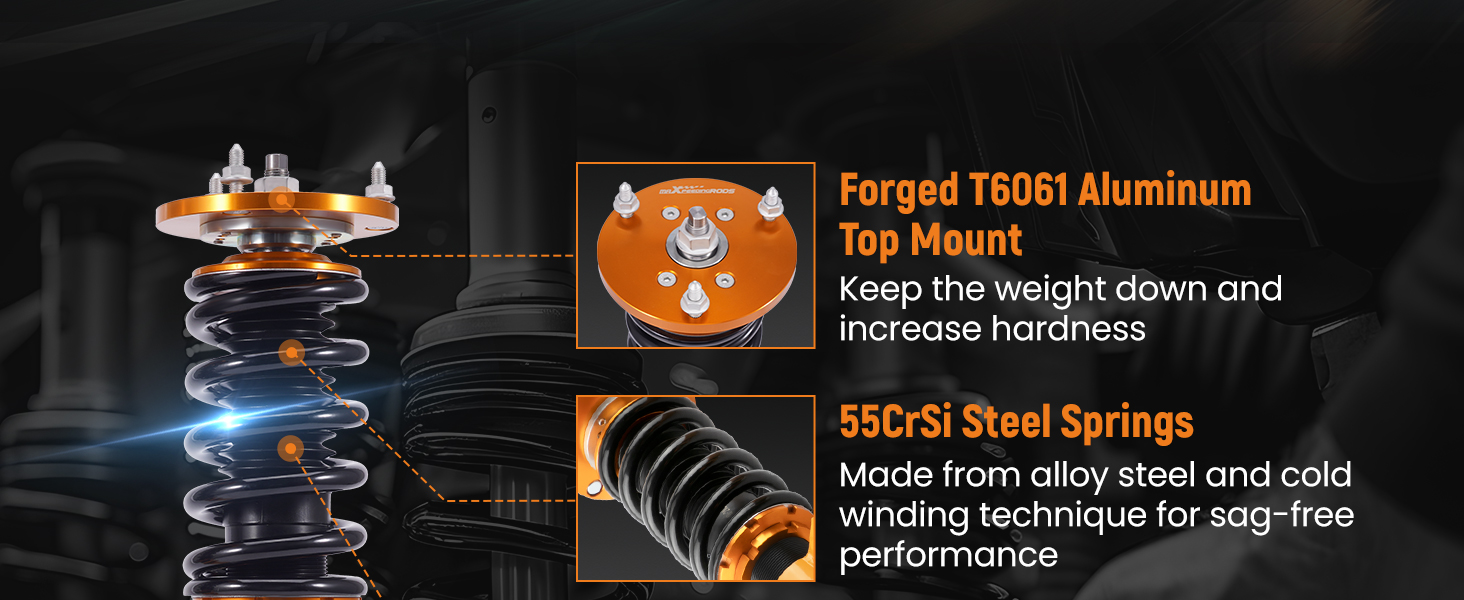

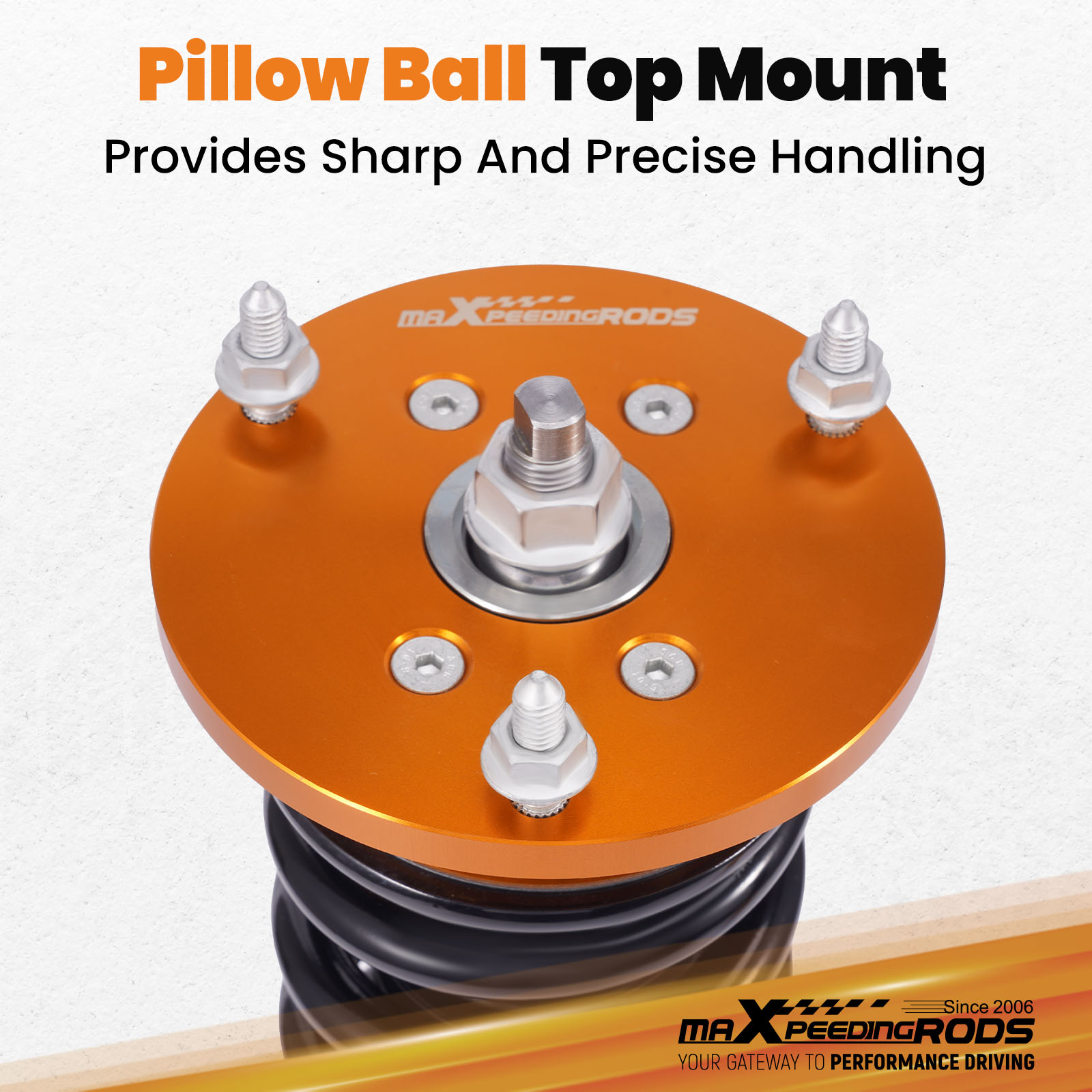

Aluminum top mounts with Pillow ball

Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Matt Finish For Superior Strength And Corrosion Protection.

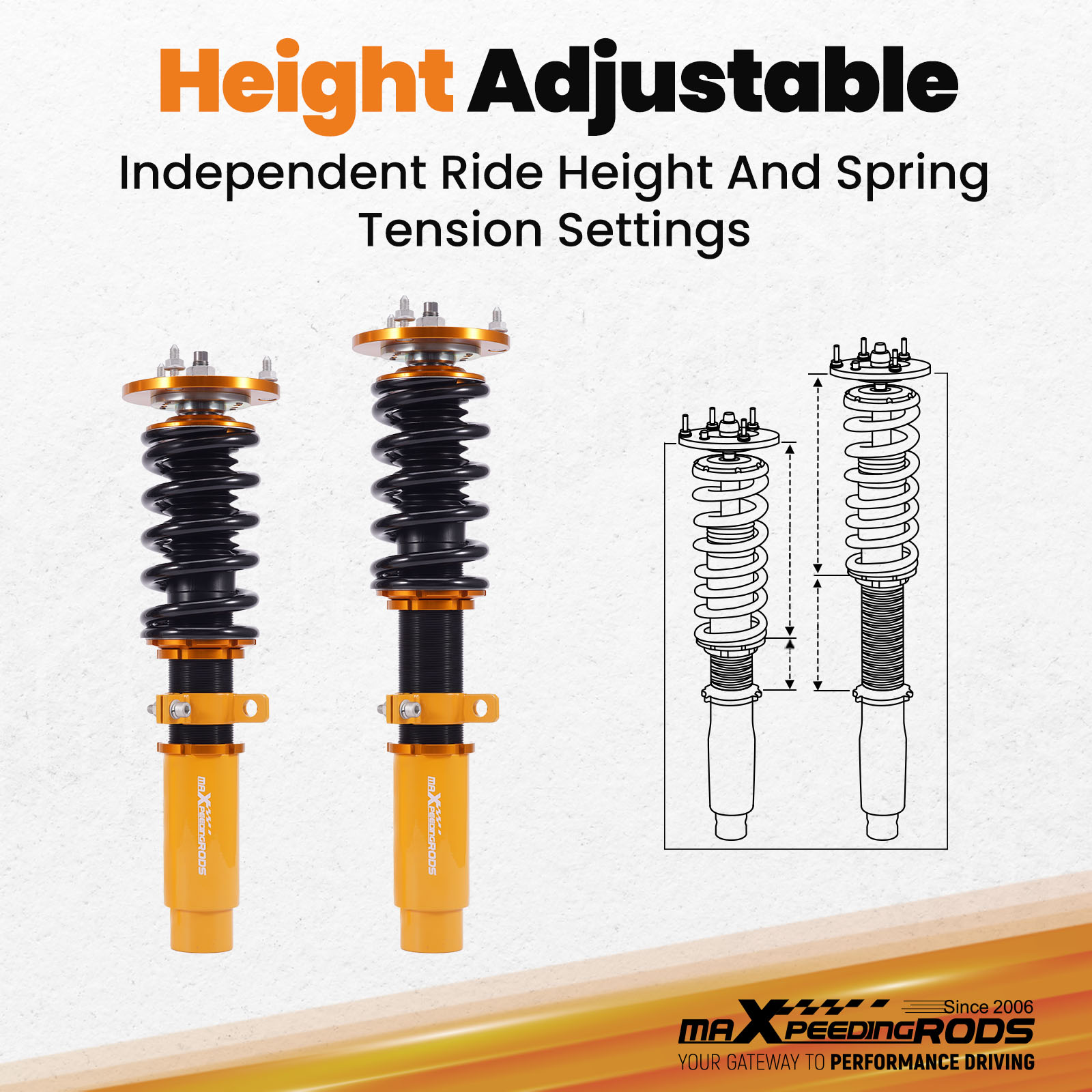

Drops From 1 to 3 Inch From Factory Ride Height

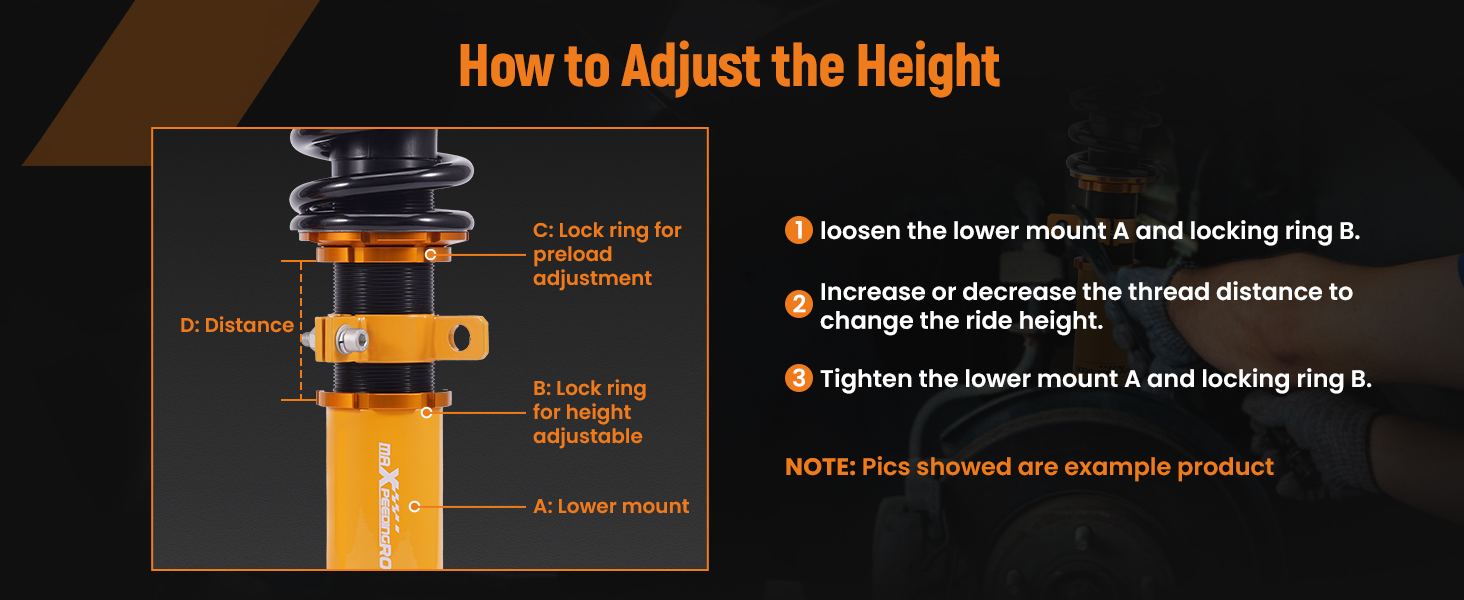

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

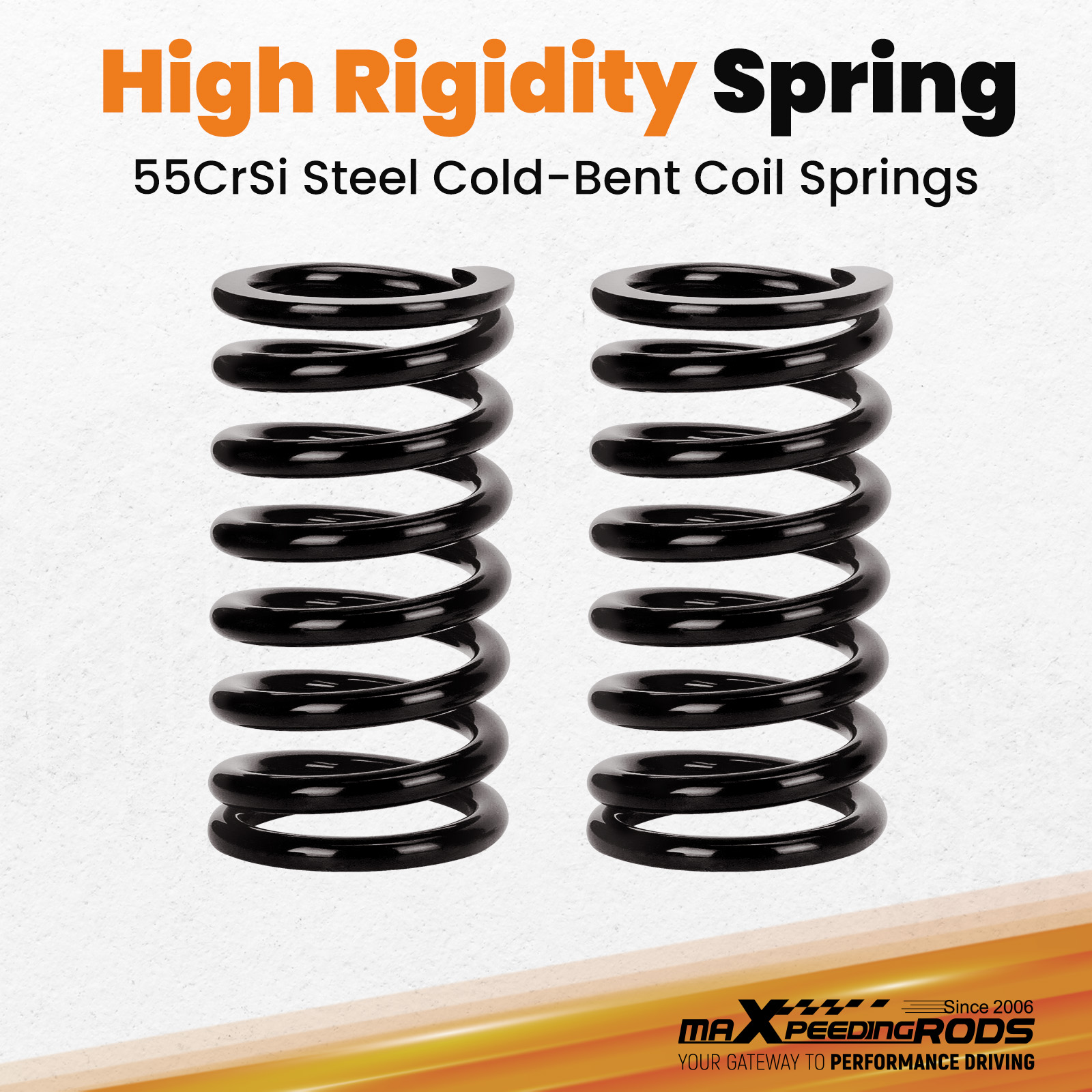

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications

Front top mount	Pillow ball
Height adjustable	Yes, Lowering 1-3 inch
Front Spring length	180 mm
Rear Spring length	170 mm
Front spring length	10 kg/mm (560 lbs/in)
Rear spring length	8 kg/mm (448 lbs/in)
Package Including	2 Front + 2 Rear
Warranty	1 Year

Features

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver
High Rigidity 55CrSi Steel Cold-bent Coil Springs

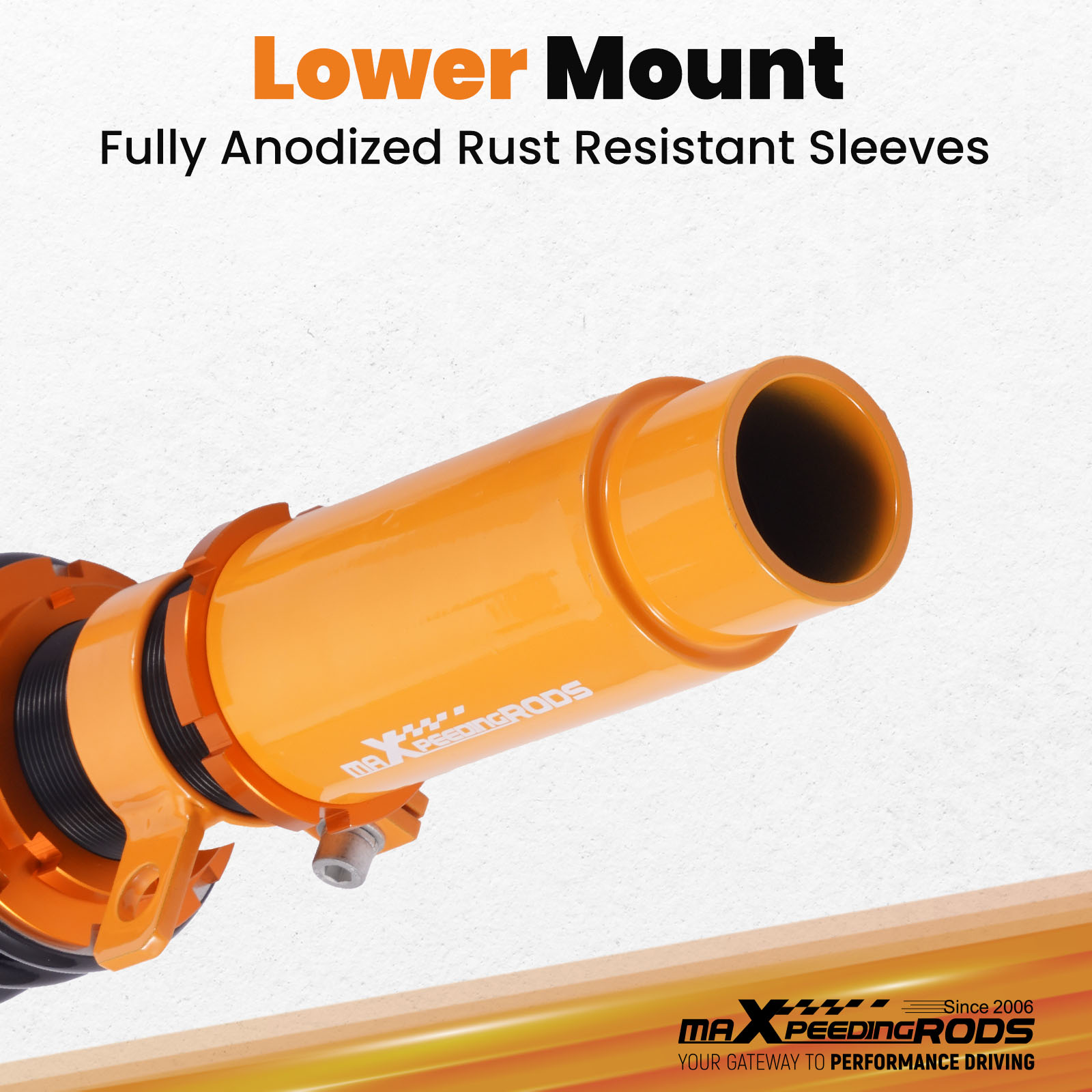

Weight Saving Aluminum Components And Carbon Steel Lower Mount Brackets
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase

Application

For BMW Z4 Roadster (E85) (2003-2009) 2.0 i,3.0 i,2.5 i,3.0 si, 2.2 i,2.5 si
For BMW Z4 Coupe (E86) (2006-2009) 3.0 si

Specification

- Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 8 kg/mm (448 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 180 mm
- Spring length Rear: 170 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring

Package included

- 2 Front + 2 Rear Full coilovers

- A pair of drop links
- A pair of wrenches for height adjustment

★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Other items you might also like

Pair Adjustable Rear Lower Camber Control Arms Kit for BMW E36 E46 3-Series

Auto Transmission Oil Pan Repair Kit for BMW E90 E91 323i 330i 335i Z4 X5 525i

Throttle Body For BMW 325Ci 325i 325xi 525i E46 E60 2001-2006 L6 2.5L 20921693

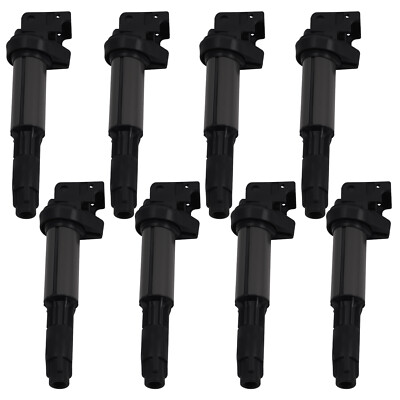

8 Ignition Coils Pack for BMW 545i 550i 645Ci 650i 745i 750i Li X5 4.4L 4.8L V8
