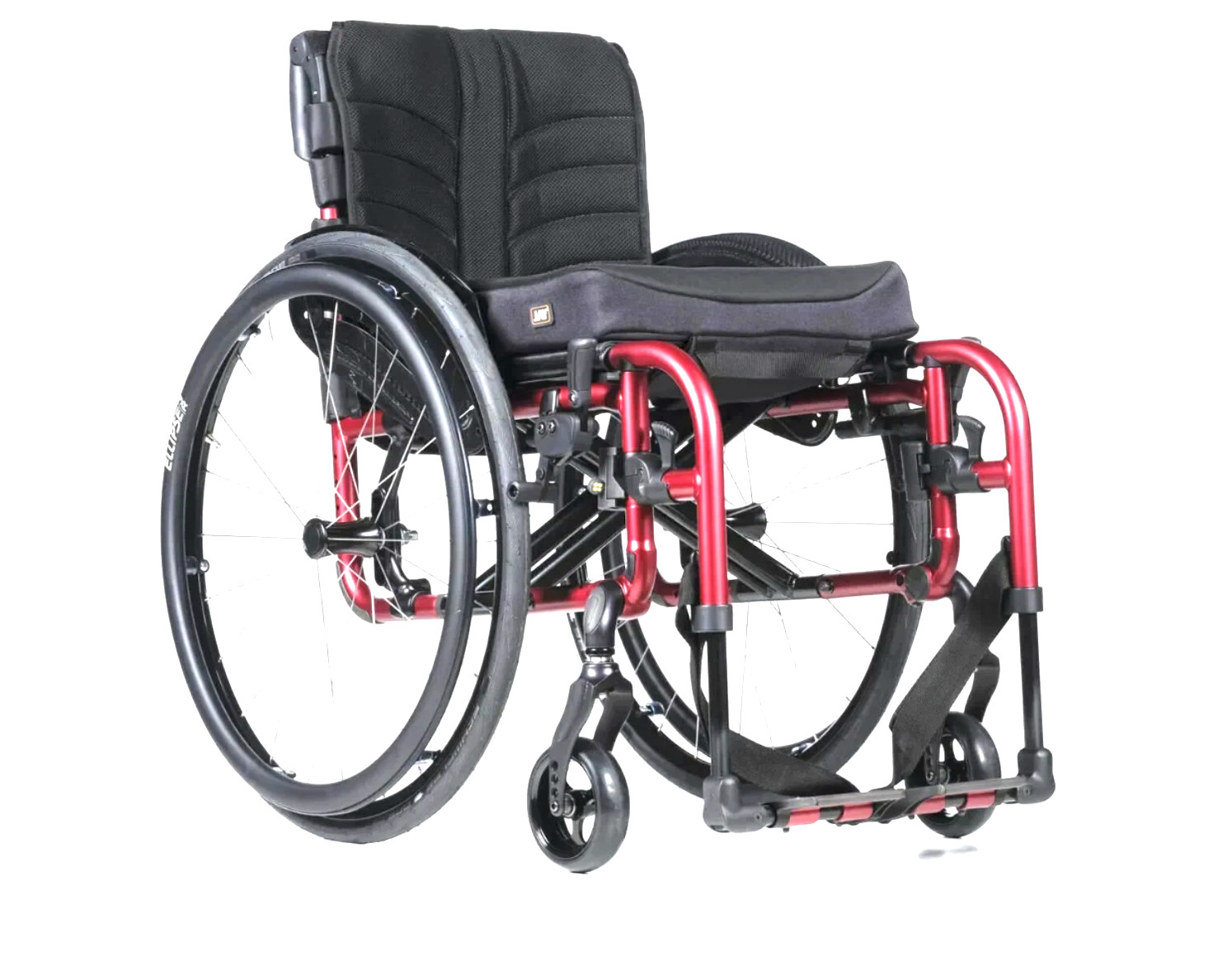

Quickie QS5X Folding active wheelchair-Made to measure-Free Home Assessment

Please note, the price shown is for the base model!

Note, this is a prescriptive product, we strongly advise that you complete a free in-home assessment before purchase, however we can send you a measurement guide if you would like to do it yourself at home.

Experience FreeFold and save over 40% energy with every fold!

Introducing the QUICKIE QS5 X, the wheelchair that redefines easy folding thanks to FreeFold - an innovative cross-brace design that reduces folding forces and saves you over 40% energy with every fold! The QS5 X makes light work of lifting too, with an (optional) folding fixation that keeps your wheelchair tightly-locked to prevent any unintentional opening during transport.

Weighing from just 7.3 kg (without wheels), it's the lightest aluminum box frame wheelchair too. Made from heat-treated 7000 series Aluminium, lock-out the frame and its oval-tubed 4-arm cross brace provides the ride performance to rival any rigid wheelchair. Saving not just energy, but your shoulders too.

Easy to fold and stays folded - thanks to the innovative FreeFold feature. FreeFold stands for sophisticated and precise engineering of the folding geometry, resulting in particularly little force when folding and unfolding. During folding, the wheel camber does not change and the folded wheelchair stands solidly on the ground - a real benefit if you are frequently folding and transporting your QS5 X.

Easy propelling and lifting with the featherweight QS5 X.

Unrivaled lightweight - A remarkably low transport weight from 7.3 kg for the Fixed Front and 7.5 kg for the Swing Away frame! The QS5 X as the lightest aluminum folding box frame on the market is not only comfortable to lift, transport but also effortless to self-propel to increase the rider’s energy efficiency. The material and construction make all the difference – strong doesn‘t always have to mean heavy. The frame of the QS5 X is made of high-grade 7000 series aluminum, designed for an exceptionally high strength-to-weight ratio and is used in many aerospace applications where strength, durability and weight are essential factors.

Fixed-Front or Swing-Away?

The QS5 X is available with two different frame versions - Fixed-Front and Swing-Away.

The Fixed-Front version has footrests that are permanently attached to the chair frame, providing additional stability and support. This feature can be particularly beneficial for people with higher positioning demands, as it helps to keep the legs in an ideal position.

The Swing-Away version has footrests that can be swung away to the side, which enables a safe and comfortable transfer into the chair, especially from a standing position. By removing the footrest, it´s possible to position the wheelchair closer to the object you want to transfer on, furthermore the pack-size of the wheelchair will be minimised.

Dimensions

Width:SW + 180/240/270 mm at 0, 2, 4° camber and 25" wheels

Length:1113 mm

Height:1020 mm

Seat Width:340 - 540 mm (in 20 mm steps)

Seat Depth:340 - 500 mm

Front seat height:360 - 540 mm

Rear seat height:350 - 520 mm

Backrest Height:250 - 500 mm

Frame Angle:Swing Away: 70/80/90°, Fixed-Front: 75/85°

Maximum Safe Slope:7°

Rear Wheel Size:22", 24", 25", 26"

Front Wheel Size:4", 5", 6", 7"

Colours:22

Performance/Weights

Frame Type:Folding

Frame Version:Swing Away / Fixed Front

Material:7000 Series Aluminium

Maximum User Weight:140 kg

Total Weight:Swing Away: From 10.1 kg, Fixed Front: From 9.9 kg

Dismantled Weight:Swing Away: From 7.5 kg (without rear wheels), Fixed Front: From 7.3 kg (without rear wheels)

Transportation

Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19
