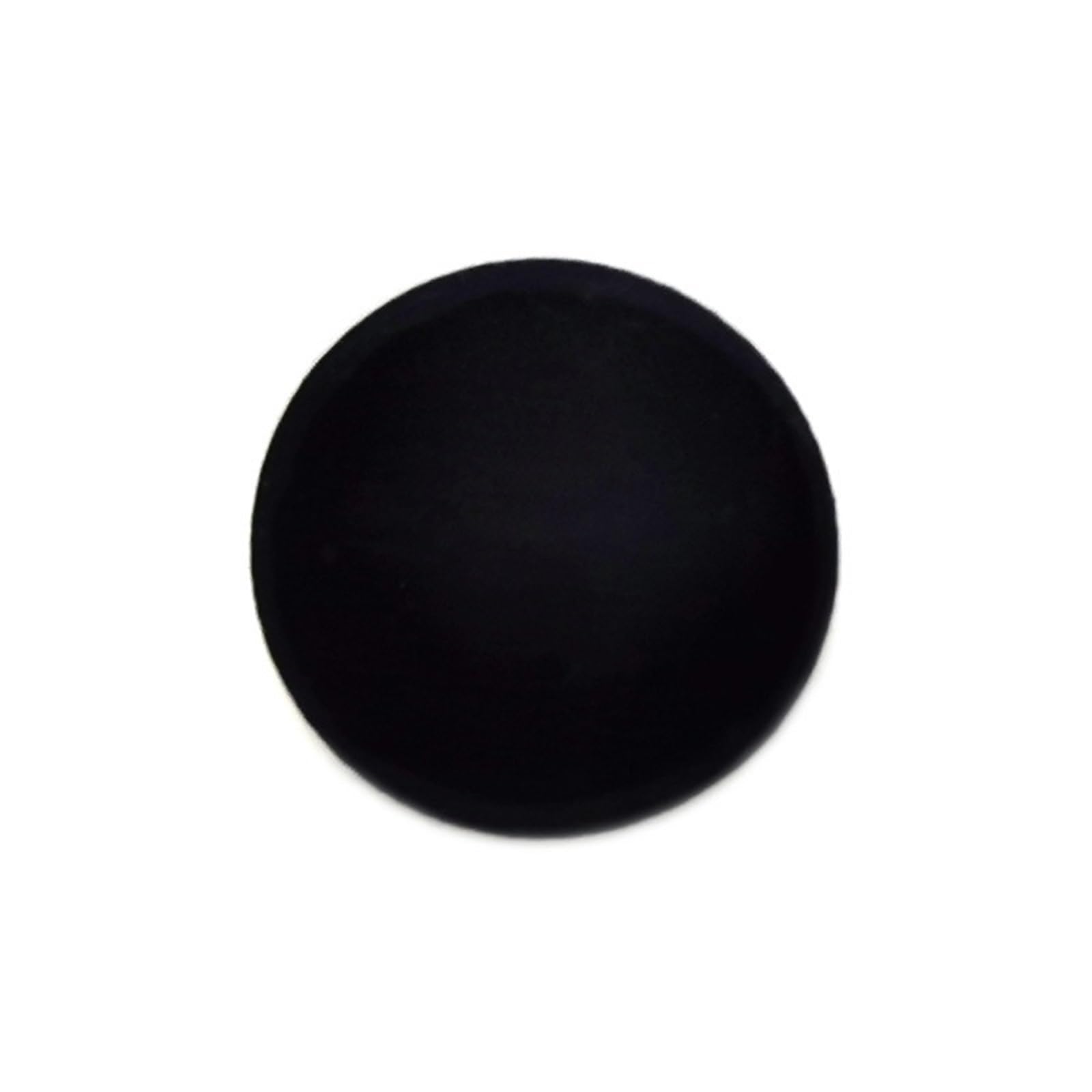

1Pc Infrared 760nm 780nm 800nm 850nm 940nm 1100nm Long Wave Pass Filter Round Dia=11mm Thick-1.0MM for IR CCD Camera M12 Board Lens
1개 적외선 760nm 780nm 800nm 850nm 940nm 1100nm 롱 패스 필터 원형 직경=11mm 두께-1.0MM IR CCD 카메라 M12 보드 렌즈용
| 상품번호 | B0FSD36716 |
| 상태 | New |
| 브랜드 | Generic |
| 판매자 | GatherTOOL--Shop |
| 출고국 | 미국 (US) |
아마존 판매가
$27.61
약 40,697원
구매대행 예상 비용은 로그인 후 확인하실 수 있습니다.
상품 특징
The long-wave pass filter allows light whose wavelength is greater than the set wavelength to pass,
It has the advantages of wide cut-off bandwidth, deep cut-off depth, high conversion steepness, and high transmittance.
Widely used in fluorescence excitation spectroscopy, Raman spectroscopy applications, spectral grouping applications,
It can also be used in imaging optical systems, machine vision system applications, to eliminate interference light outside the available bands,
Quantity: 1pc
It has the advantages of wide cut-off bandwidth, deep cut-off depth, high conversion steepness, and high transmittance.
Widely used in fluorescence excitation spectroscopy, Raman spectroscopy applications, spectral grouping applications,
It can also be used in imaging optical systems, machine vision system applications, to eliminate interference light outside the available bands,
Quantity: 1pc
상품 설명
Optical indexSize(Dia.T.): 11mm x 1.0mmCenter wavelength: LP 800nm +/- 5nmTransmission band: 775nm~1100nmCut-off band: 200nm~730nmMaterial: AcrylicTransmission wavefront error: /4 @ 800 nm<;30 arc secondsThickness: 1.0mm ±0.05mmCenter wavelength tolerance: ±1%Transmittance T: Tavg>90%Cut-off zone depth: OD4<;1%Effective aperture: >90%Incident angle: 0°==========Model Number : NM-1100-0100-LPType : Color FilterThickness : 1.0mmTo Fit : Sports Camera, CCTV LENS, IP Camera, Camcorder, Camera, Camera Drone, Digital Camera, Film CameraWavelength : Long Band Pass 800nm-1100nmCircular Size : 11mmFilter Shape : CircularFilter Color : Black
