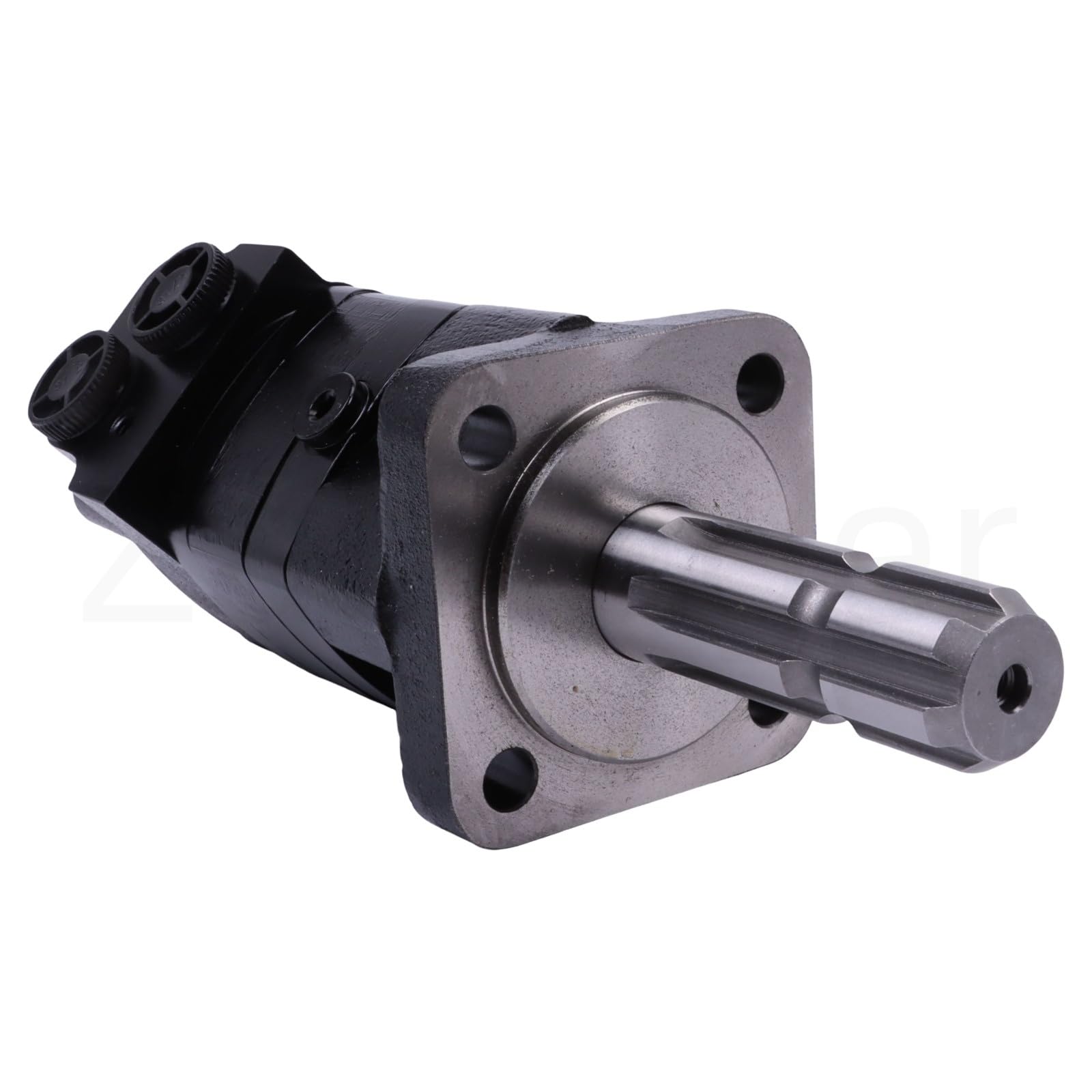

1pcs OMS160-151F0563 151F-0563 151F0563 Hydraulic Motor Shaft 1 3/8" Z6 for Sauer Danfoss
1pcs OMS160-151F0563 151F-0563 151F0563 Hydraulic Motor Shaft 1 3/8" Z6 for Sauer Danfoss
| 상품번호 | B0F2F61R1L |
| 상태 | New |
| 브랜드 | Zachager |
| 판매자 | Zachager |
| 출고국 | 미국 (US) |
아마존 판매가
$235
약 346,390원
구매대행 예상 비용은 로그인 후 확인하실 수 있습니다.
상품 특징
【Part Number】OMS160-151F0563 151F-0563 151F0563
【Application】For Sauer Danfoss
【High efficiency】 Advanced design and manufacturing processes ensure that the hydraulic pump can efficiently convert mechanical energy into hydraulic energy, reducing energy loss
【Energy-saving design】Some models use variable displacement technology to adjust the output flow according to actual needs to achieve more energy-saving operation
【Warm Tips】Please check the specifications carefully to make sure you get the product you want. If you are not sure, you can send us your model number.
【Application】For Sauer Danfoss
【High efficiency】 Advanced design and manufacturing processes ensure that the hydraulic pump can efficiently convert mechanical energy into hydraulic energy, reducing energy loss
【Energy-saving design】Some models use variable displacement technology to adjust the output flow according to actual needs to achieve more energy-saving operation
【Warm Tips】Please check the specifications carefully to make sure you get the product you want. If you are not sure, you can send us your model number.
상품 설명
Flange shape: StandardNumber of mounting holes: 4Shaft type: SplineShaft diameter: 35 mmNumber of shaft teeth: 6Displacement: 160 cm3/revMaximum continuous torque: 490 NmSeal type: StandardMaximum continuous working pressure: 210 barMaximum intermittent working pressure: 260 barMaximum pressure peak: 280 barMaximum flow: 75 l/minMaximum speed: 470 rpmMinimum speed: 8 rpmMain oil port thread diameter: 1/2 inchMain port thread type: GDrain port thread diameter: 1/4 inchDrain port thread type: GMaximum power: 16,5 kWDistance from the center of the main port to the front flange: 137,9 mmDistance from the center of the main second port to the front flange: 159,9 mmHousing length: 182,2 mm
