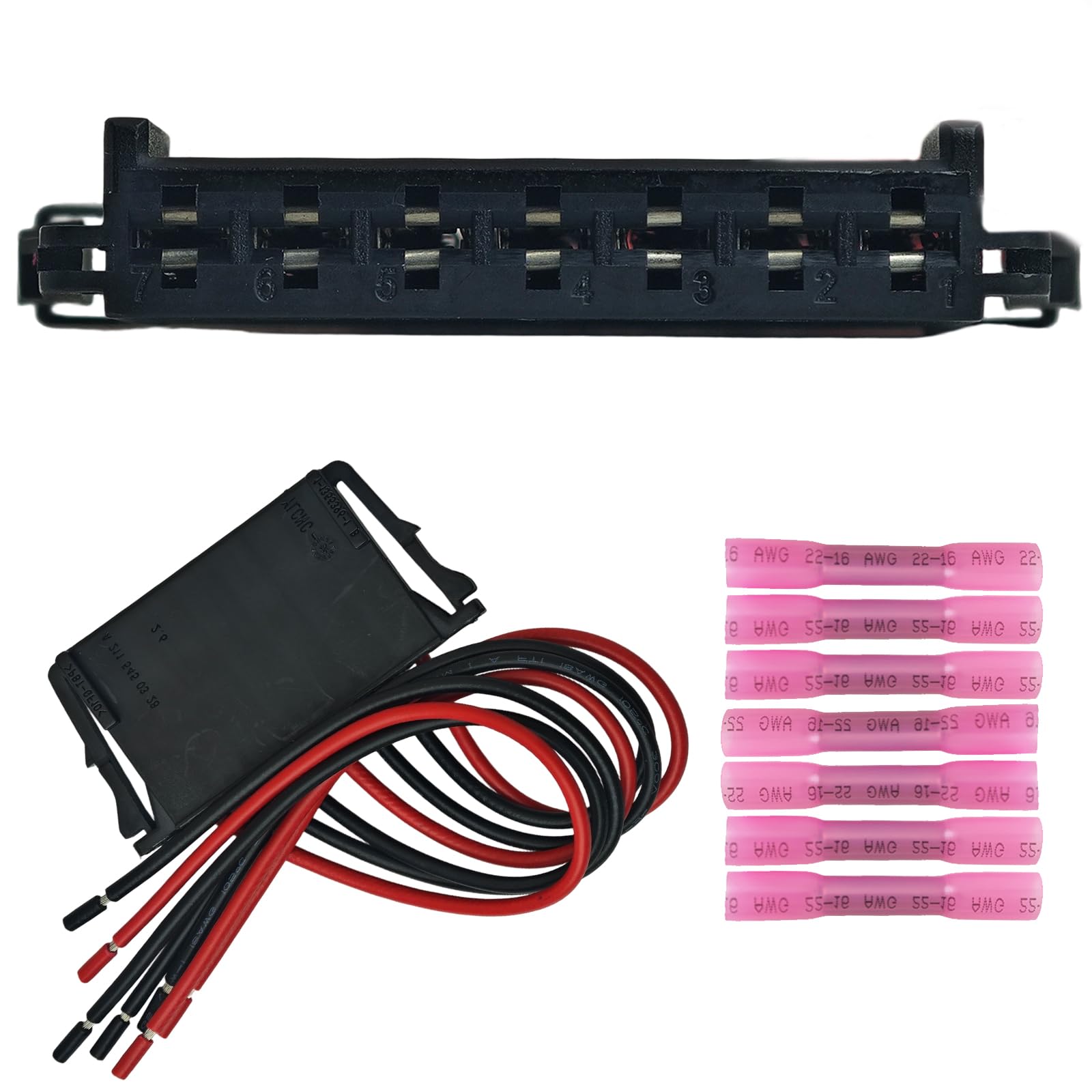

Tail Light Connector Pigtail Harness, OE A2115450328 (211 545 03 28), Compatible with Mercedes-Benz C-Class W204 C250 C300 C350 C63 2008-2014; Also fits W203/W211 Rear lamp
테일 라이트 커넥터 피그테일 하네스, OE A2115450328 (211 545 03 28), 메르세데스-벤츠 C-클래스 W204 C250 C300 C350 C63 2008-2014와 호환되며 W203/W211 리어 램프에도 맞습니다
| 상품번호 | B0DS6D63BR |
| 상태 | New |
| 브랜드 | AUOSTMO |
| 판매자 | Shen Creation |
| 출고국 | 미국 (US) |
아마존 판매가
$8.99
약 13,251원
구매대행 예상 비용은 로그인 후 확인하실 수 있습니다.
상품 특징
Fits Mercedes-Benz C-Class W204 rear tail lamp (7-pin plug): C250 (2012–2014), C300 (2008–2014), C350 (2008–2014), C63 AMG (2008–2015). This is the pigtail/connector that mates to the rear bulb carrier on W204; see NHTSA recall documents describing unplugging the tail-lamp harness connector and replacing the bulb carrier/connector when corroded. Always match the 7-pin shape and latch to your original part.
Fits C-Class W203 rear tail lamps (7-pin): C230, C240, C280, C320, C350, C32 AMG, C55 AMG. Several EU listings identify A2115450328 as the rear-lamp connector repair kit for W203/W204/W211. Use by visual confirmation of the 7-pin housing and keying.
Fits E-Class W211 rear tail lamps in many trims (E320/E350/E500/E55/E63) where a 7-pin plug is used. Cross-check the plug cavity count and latch before ordering.
OE / Interchange / Formats: A2115450328, 2115450328, 211-545-03-28, 211 545 03 28. Common naming: plug / plug housing / 7-pin bushing housing / tail lamp connector (rear).
Mates to rear bulb carriers on these platforms (examples by side/years; verify visually & 7-pin layout): W204 C-Class bulb carrier examples: A2048202277 (LH), A2048202577 (RH), and related superseding variants by tail lamp version. W203 C-Class bulb carrier examples: 2038200177 / 2038200877 (side-specific). W211 E-Class bulb carrier examples: 2118200177 / 2118200377 / 2118201677
Fits C-Class W203 rear tail lamps (7-pin): C230, C240, C280, C320, C350, C32 AMG, C55 AMG. Several EU listings identify A2115450328 as the rear-lamp connector repair kit for W203/W204/W211. Use by visual confirmation of the 7-pin housing and keying.
Fits E-Class W211 rear tail lamps in many trims (E320/E350/E500/E55/E63) where a 7-pin plug is used. Cross-check the plug cavity count and latch before ordering.
OE / Interchange / Formats: A2115450328, 2115450328, 211-545-03-28, 211 545 03 28. Common naming: plug / plug housing / 7-pin bushing housing / tail lamp connector (rear).
Mates to rear bulb carriers on these platforms (examples by side/years; verify visually & 7-pin layout): W204 C-Class bulb carrier examples: A2048202277 (LH), A2048202577 (RH), and related superseding variants by tail lamp version. W203 C-Class bulb carrier examples: 2038200177 / 2038200877 (side-specific). W211 E-Class bulb carrier examples: 2118200177 / 2118200377 / 2118201677
상품 설명
Wire Harness Length:16CM
