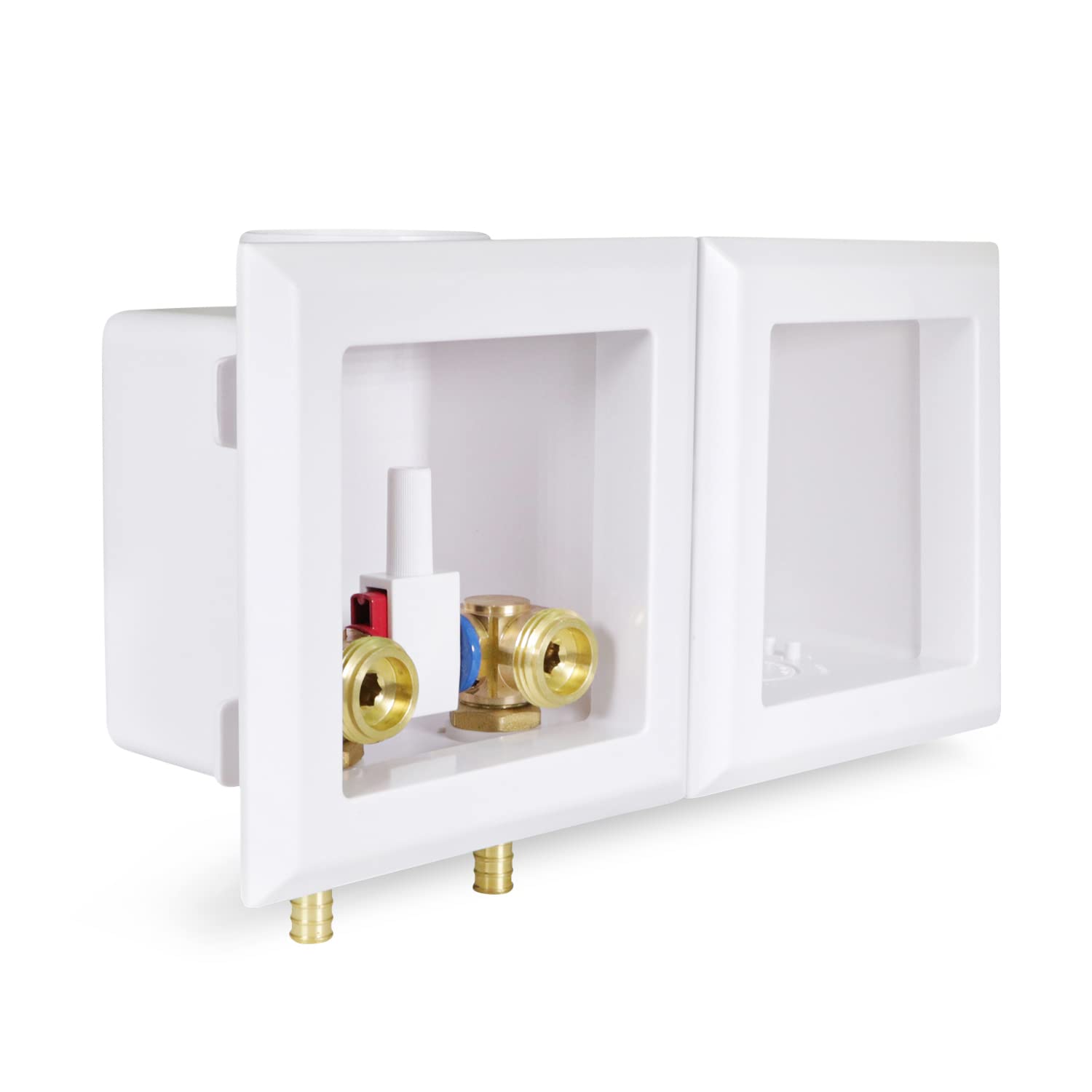

Highcraft Washing Machine Outlet Box Double Interlocking Universal Utitliy Outlet Valve Box for Ice Makers, Gas Valves, Air Admittance Valves and Washing Machine, 1/2" PEX B Connection

Highcraft 세탁기 아울렛 박스 이중 인터로킹 유니버설 다용도 아울렛 밸브 박스 제빙기 가스 밸브 공기 흡입 밸브 및 세탁기용 1/2" PEX B 연결부

Highcraft Washing Machine Outlet Box Double Interlocking Universal Utitliy Outlet Valve Box for Ice Makers, Gas Valves, Air Admittance Valves and Washing Machine, 1/2" PEX B Connection

상품번호	B08PDMTF7V
상태	New
브랜드	HIGHCRAFT
판매자	Amazon.com
출고국	미국 (US)

아마존 판매가

$44.21

약 65,166원

구매대행 예상 비용은 로그인 후 확인하실 수 있습니다.

상품 특징

This Highcraft washer box is made of durable ABS one-piece construction for ultimate leak free protection. It has a sleek compact design and can be linked with more boxes together. The outlet box can be used for washing machines, ice makers ,gas vavles, and air admittance valves
Includes: 2 outlet boxes with faceplates, 2 quarter-turn Pex crimp brass valves, nuts, mounting brackets and interlocking center clip. Features 4 integrated mounting tabs for stud mounting with optional clip on brackets
The washing machine valve box includes top and bottom center drain knock outs so it can be installed upside down to be used with top mount valves and as center drain. Knock outs are compatible with clip-on drain funnel.
This washing machine outlet box conforms to UPC and ASSE. The shut off valves are made of lead free brass certified to NSF61-372 and ANSI A112.18.1, safe to use for water distribution.
Size: 3" Box depth. Adjustable faceplate allows up to 1" wall thickness. Compatible with 1/2" pipes.

상품 설명

The Highcraft Washer Box offers durable, leak-free protection with its one-piece ABS plastic construction. Perfect for washing machines, ice makers, gas valves, and air admittance valves. This box features 2 outlet boxes, 2 lead-free brass quarter-turn valves, and all necessary mounting hardware. It includes 4 mounting tabs for stud mounting and optional clip-on brackets for added flexibility. With top and bottom drain knockouts, it can be installed upside down for top-mount valves or as a center drain box. NSF61-372 and ANSI A112.18.1 certified for safety, this box fits 1/2" pipes and supports wall thicknesses up to 1”.
