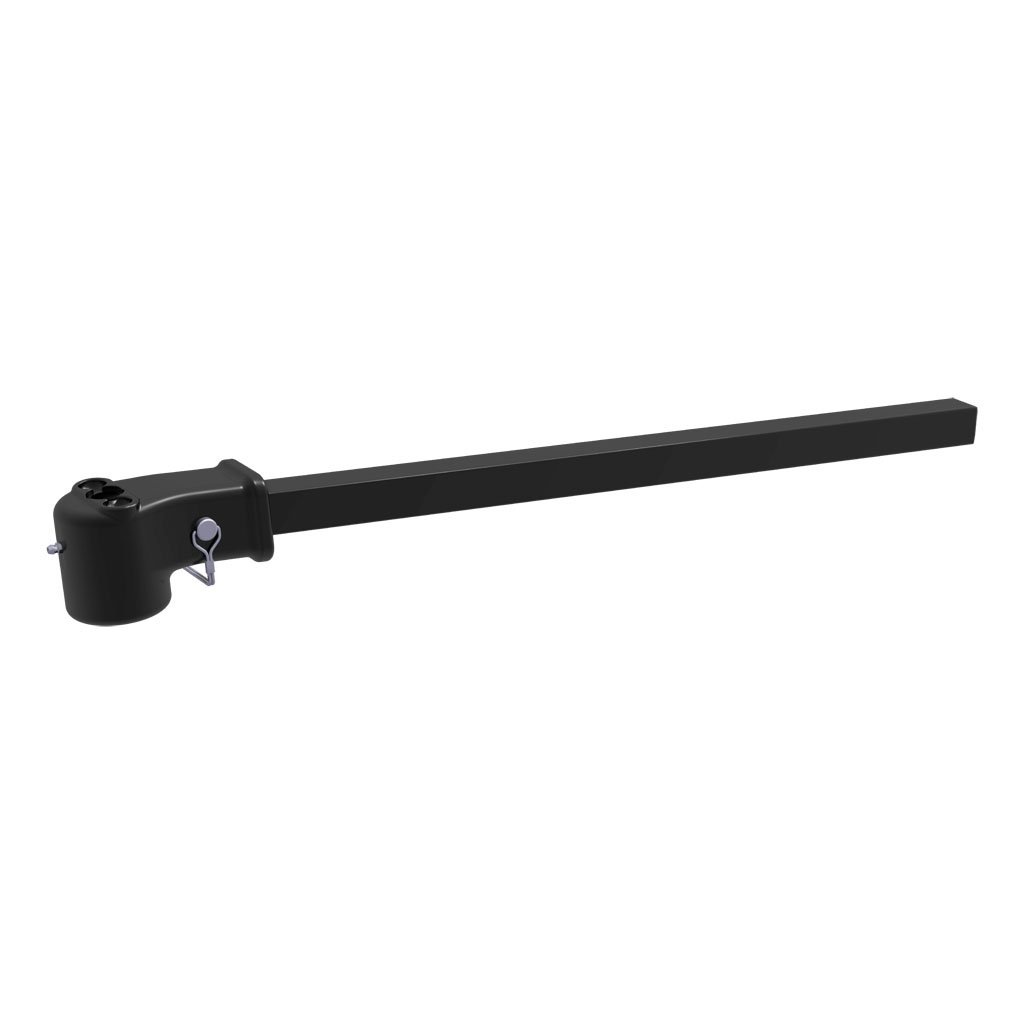

Curt 17536 Replacement TruTrack Weight Distribution Spring Bar

Mounts to a TruTrack WD hitch head to help level the trailer and tow vehicle
Cam springs build up pressure for integrated sway control
Constructed from forged steel for optimum strength
Protected by a highly durable carbide powder coat finish
Includes one TruTrack spring bar

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with integrated sway control to deliver the smoothest, safest ride possible. This, coupled with one of the easiest setups in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. This replacement TruTrack spring bar features forged steel construction and a durable powder coat finish for long-lasting use. It offers a gross trailer weight capacity of 8,000 - 10,000 lbs. and a tongue weight capacity of 800 - 1,000 lbs. It also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. One spring bar is included in this package.
